EATON - MOELLER LS-XSD-ZBZ LS-XSD-ZBZ 106836 Y7-106836 EATON ELECTRIC Covers View larger
Images are for illustrative purposes only. Please refer to data sheet for details

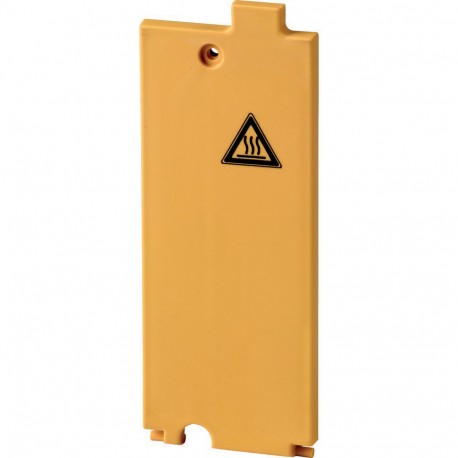

LS-XSD-ZBZ 106836 Y7-106836 EATON ELECTRIC Covers

LS-XSD-ZBZ

106836

Y7-106836

EATON - MOELLER

1 Pcs.

Covers LS-XSD-ZBZ Eaton Moeller® series LS Covers IEC EN 60947-5-1, IP65_x, approval of employers' liability insurance Association GS-ET-19, device for world markets, actuator for electromagnetic door interlock, the ZBZ power switch enhances the safety standard for personnel and process protection through reliable protection and locking of protective doors. The ZBZ power switch works according to two principles of operation: with magnetic force or spring-powered interlock. Spring-powered interlock lends itself optimally to personnel protection. Thus each door stays safely closed even during a power failure. In an emergency , the protective guard should be opened using an auxiliary release mechanism. Magnetic-powered interlocks are used for personnel and process protection. The protective shroud is locked when voltage is applied, in the event of power failure the protected area is directly accessible. With separate annunciation of the door position, suitable for use with electronic devices to IEC/EN 61131-2

Automation > Drive head for position switches/hinge switches
Position Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller LS-XSD-ZBZ cover accessory is engineered to provide protective enclosure sealing and housing integrity for modular safety interlock systems. Components of this type are routinely utilized in industrial machine guarding setups, automated cell access doors, and safety gate enclosures. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: LS-XSD-ZBZ
  • Catalogue code: 106836
  • Catalogue title: LS-XSD-ZBZ 106836 Y7-106836 EATON ELECTRIC Covers
  • Product description: General specifications Product Name Eaton Moeller® series LS Accessory Cover Catalog Number 106836 Model Code LS-XSD-ZBZ EAN 4015081065967 Product Length/Depth 15 mm Product Height 150 mm Product Width 55 mm Product Weig
  • Manufacturer summary: Covers LS-XSD-ZBZ Eaton Moeller® series LS Covers IEC EN 60947-5-1, IP65_x, approval of employers' liability insurance Association GS-ET-19, device for world markets, actuator for electromagnetic door interlock, the ZBZ

More info

▲

General specifications

Product Name
Eaton Moeller® series LS Accessory Cover
Catalog Number
106836
Model Code
LS-XSD-ZBZ
EAN
4015081065967
Product Length/Depth
15 mm
Product Height
150 mm
Product Width
55 mm
Product Weight
0.008 kg
Compliances
CE

General

Degree of protection
IP65

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Actuator

Actuator type
Other

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
