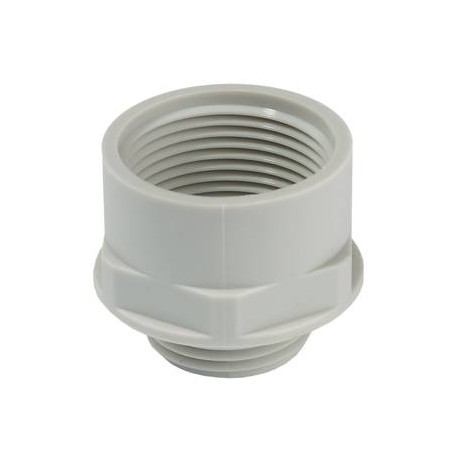

AMP 12/9 10063629 WISKA PA light grey converter, M12 outer thread, PG.09 interior
AMP 12/9
AMP 12/9
WISKA
25 units
Automation > WISKA Products
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Wiska AMP 12/9 is a PA light grey converter, M12 outer thread, PG.09 interior designed for threaded pathway transitions in industrial enclosures and control cabinets. Converters of this type allow installers to securely bridge differing metric and PG thread standards across machinery housings, junction boxes, and electrical panels while maintaining structural integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Material: Polyamide, fibre reinforced
- Temp. range min: -40 °C
- Temp. range max: 100 °C
- Glow wire test: 650 °C
- Thread type outer: M
- Ø outer thread: 12
- Lead outer: 1,5
- Length screw-in thread L: 9 mm
- Thread type inner: PG
- Ø inner thread: 9
- Length internal thread: 15,5 mm
- Total length TL: 27 mm
- Key width SW: 20 mm
- Collar diameter (E): 22 mm
- Form: A
- Product Color: RAL 7035
More info
▲Features
| Material | Polyamide, fibre reinforced |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 650 °C |
| Thread type outer | M |
| Ø outer thread | 12 |
| Lead outer | 1,5 |
| Length screw-in thread L | 9 mm |
| Thread type inner | PG |
| Ø inner thread | 9 |
| Length internal thread | 15,5 mm |
| Total length TL | 27 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Form | A |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10063629 |
| Type | AMP 12/9 |
| Packing unit | 25 |
| ETIM-Classification | EC000938 |
