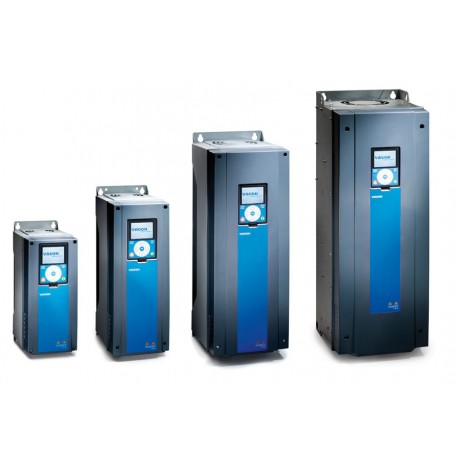

136U5664 70-AB3L00032W04B520BM2H-00125614 VACON VOLCAN 100 FLOW
136U5664
136U5664
VACON
1 unit
Automation > VACON 100
FLOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Frequency converter
VACON0100-3L-0003-2-FLOW+IP54+FL03+DPAP+DLES
VACON 100 FLOW
208–240 Vac, 3 Amp, IP54/NEMA12
Graphical Keypad MK01
C2 Commercial&Industry Environ
B Slot: F3,3 Relay board
C Slot: No board
D Slot: No board
E Slot: No board
Fieldbus: Std protocol,Modbus,N2,BacNet
Manual: Spanish
Frame 04
Other options according to Model code
Product details
| Gross weight | 7 Kilogram | ||
| Net weight | 6 Kilogram | ||
| EAN | 5714853037216 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Segment | -FLOW | VACON 100 FLOW | |
| Region Code | -R00 | R00 International | |
| Mains voltage | -2 | 208–240 Vac | |
| Current rating | -0003 | 3 Amp | |
| Installation options | -DM | DM Drive Module | |
| Enclosure | +IP54 | IP54/NEMA12 | |
| Control panel | +HMGR | Graphical Keypad MK01 | |
| EMC emission limit category | +EMC2 | C2 Commercial&Industry Environ | |
| Common mode filter (for DM) | +P000 | No Option | |
| DUT filter (for DM) | +P000 | No Option | |
| Brake chopper | +DBNO | No dynamic braking device | |
| Real time clock option | +SRNO | No Battery for real time clock | |
| Configurable power range | NONE | None | |
| Power connections | +P000 | No Power options (+P000) | |
| Cable entry | +QGLM | Metric conduit plate | |
| Additional Equipment B | +Q000 | No option for Qxxx_B (+Q000) | |
| Additonal Equipment C | +Q000 | No additonal option for Qxxx_C | |
| Shipping package | +GSCB | Cardboard Box as Shipping pack | |
| Marine construction | +E000 | no option | |
| B-Slot Option Board | +SBF3 | F3,3 Relay board | |
| C- Slot Option Board | +SC00 | No board | |
| D-Slot Option Board | +SD00 | No board | |
| E-Slot Option Board | +SE00 | No board | |
| Internal FB selection | +FBM1 | Std protocol,Modbus,N2,BacNet | |
| Documentation level | +DPAP | Paper Manuals | |
| Document language preference | +DLES | Spanish | |
| Firmware Language Pack | +FL03 | UK, ES, FR, IT, NL, PT lang | |
| Application | +A0000 | No Application | |
| Parameter Set | +L0000 | No application parameter set | |
| Motor parameter default freq | +LS50 | 50 Hz def motor freq settings | |
| Unit for measure for display | +LSSI | Metric Units of Measure | |
| Labeling options | +LPC1 | no additional labels | |
| UL approval | +GAUL | UL Approval (+GAUL) | |
| Marine approval | NONE | None | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| KC approval | +GAKC | KC Approval | |
| Ukrainian approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Auxilary power supply | +C000 | no option | |
| DC power supply for aux device | +C000 | no option | |
| AC socket for aux devices | +C000 | no option | |
| Input Devices | NONE | none_ | |
| Common mode filter (for ED) | +P000 | no option | |
| DU/DT, Sine filter (for ED) | +P000 | no option | |
| Terminal Options | NONE | none_ | |
| Door Equipments | +C000 | no option | |
| Cabinet heater | +C000 | no option | |
| Cabinet light | +C000 | no option | |
| Motor heater control | +C000 | no option | |
| Emergency stop options | +C000 | no option | |
| Insulation fault sensor | +C000 | no option | |
| Cabling from top | +C000 | no option | |
| Back channel cooling | +C000 | no option | |
| Cabinet Plinth | +C000 | no option | |
| Empty extension segment | NONE | None | |
| Standardized cabinet solution | NONE | None | |
| Engineered cabinet solution | NONE | None | |
| Product Group | VACON | VACON | |
| Product Series | 0100 | Vacon 100 series | |
| Phase | -3L | 3 Phase AC Input | |
| Customized | +BM2H | Vacon 100-FLOW | |
| Main Circuit | +M000 | NONE | |
| Firmware | +F0159 | Vacon0100-Flow Software pack | |
| Max output frequency | NONE | None | |
| Terminal Box | +T000 | NONE | |
| Bypass Control Operation Mode | NONE | none_ | |
| Bypass Input Type | NONE | none_ | |
| Bypass power connection type | NONE | none_ | |
| CE approval | +GACE | CE Approval (+GACE) | |
| ATEX Approval | NONE | None | |
| County Specific Approval | NONE | None | |
| Warrenty time | +WT01 | Warranty 12/18 months (+WT01) | |
| Frame Size | MR04 | Frame 04 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Modelcode01 | VACON0100-3L-0003-2 | ||
| Modelcode02 | -FLOW+IP54+FL03+DPAP+DLES | ||
| Calculated Net Weight [kg] | 6 | ||
| Calculated Gross Weight [kg] | 7 | ||
| Motor Power Low Overload [kW] | 0,55 | 0,55 | |
| Dimensions WxHxD [mm] net | 128 X 328 X 190 | 128 X 328 X 190 | |
| Dimensions WxHxD [mm] Gross | 175 X 384 X 232 | 175 X 384 X 232 | |
| Continuous Current (NO) [A] | 3,7 | 3,7 | |
| Motor Power HP Low Overload | 0,75 | 0,75 | |
| Typecode Part 1 | 70-AB3L00032W04B520BM2H | ||
| Typecode Part 2 | -00125614 | ||
| Stockcode part 1 | 70-AB3L00032W04B520BM2H | ||
| Stockcode part 2 | -00125614 | ||
| check if complete | OK | OK | |
| Plant from Orderline | C201 | C201 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Help Counter | 25 | ||
| Help Counter | 2 | ||
| Calculated Net Weight | 6 | ||
| Salestext | MR04-0003-2+IP54+EMC2 | MR04-0003-2+IP54+EMC2 | |
| Sub family identification | NONE | Normal customer ordered | |
| ECCN US | 3A999.a | 3A999.a | |
| ECCN EU | Y901 | Y901 |
