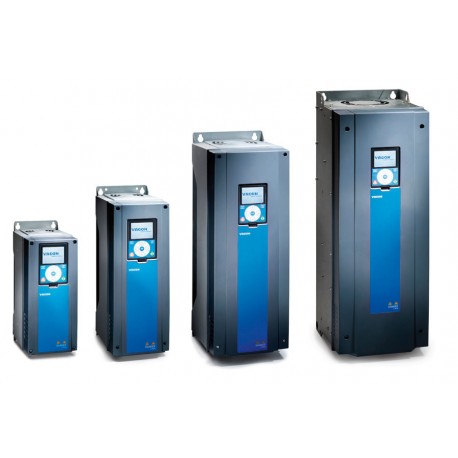

136N3660 70-AB3L00045W04B220BM2H-00119839 VACON VOLCAN 100 FLOW
136N3660
136N3660
VACON
1 unit
Automation > VACON 100
FLOW
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Precise motor speed modulation in fluid processing systems is achieved using this Vacon flow-optimized drive unit, designated as part number 136N3660. Such frequency converters are standard in pumping stations and HVAC networks to dynamically match motor output with changing hydraulic demands, ensuring stable operation and resource conservation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product View (Switch): GLBL
- Segment: -FLOW
- Region Code: -R00
- Mains voltage: -5
- Current rating: -0004
- Installation options: -DM
- Enclosure: +IP21
- Control panel: +HMGR
- EMC emission limit category: +EMC2
- Common mode filter (for DM): +P000
- DUT filter (for DM): +P000
- Brake chopper: +DBNO
- Real time clock option: +SRBT
- Power connections: +P000
- Cable entry: +QGLM
- Additional Equipment B: +Q000
More info
▲Frequency converter
VACON0100-3L-0004-5-FLOW+SBF4+SRBT+FL03+DPAP+DLES
VACON 100 FLOW
380-500 Vac, 4 Amp, IP21/NEMA1
Graphical Keypad MK01
C2 Commercial&Industry Environ
B Slot: F4,2 Relay board with therm
C Slot: No board
D Slot: No board
E Slot: No board
Fieldbus: Std protocol,Modbus,N2,BacNet
Manual: Spanish
Frame 04
Other options according to Model code
Product details
| Gross weight | 7 Kilogram | ||
| Net weight | 6 Kilogram | ||
| EAN | 5710108915070 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Segment | -FLOW | VACON 100 FLOW | |
| Region Code | -R00 | R00 International | |
| Mains voltage | -5 | 380-500 Vac | |
| Current rating | -0004 | 4 Amp | |
| Installation options | -DM | DM Drive Module | |
| Enclosure | +IP21 | IP21/NEMA1 | |
| Control panel | +HMGR | Graphical Keypad MK01 | |
| EMC emission limit category | +EMC2 | C2 Commercial&Industry Environ | |
| Common mode filter (for DM) | +P000 | No Option | |
| DUT filter (for DM) | +P000 | No Option | |
| Brake chopper | +DBNO | No dynamic braking device | |
| Real time clock option | +SRBT | Battery for real time clock | |
| Configurable power range | NONE | None | |
| Power connections | +P000 | No Power options (+P000) | |
| Cable entry | +QGLM | Metric conduit plate | |
| Additional Equipment B | +Q000 | No option for Qxxx_B (+Q000) | |
| Additonal Equipment C | +Q000 | No additonal option for Qxxx_C | |
| Shipping package | +GSCB | Cardboard Box as Shipping pack | |
| Marine construction | +E000 | no option | |
| B-Slot Option Board | +SBF4 | F4,2 Relay board with therm | |
| C- Slot Option Board | +SC00 | No board | |
| D-Slot Option Board | +SD00 | No board | |
| E-Slot Option Board | +SE00 | No board | |
| Internal FB selection | +FBM1 | Std protocol,Modbus,N2,BacNet | |
| Documentation level | +DPAP | Paper Manuals | |
| Document language preference | +DLES | Spanish | |
| Firmware Language Pack | +FL03 | UK, ES, FR, IT, NL, PT lang | |
| Application | +A0000 | No Application | |
| Parameter Set | +L0000 | No application parameter set | |
| Motor parameter default freq | +LS50 | 50 Hz def motor freq settings | |
| Unit for measure for display | +LSSI | Metric Units of Measure | |
| Labeling options | +LPC1 | no additional labels | |
| UL approval | +GAUL | UL Approval (+GAUL) | |
| Marine approval | NONE | None | |
| RCM Approval | +GACT | RCM Approval N16307 | |
| KC approval | +GAKC | KC Approval | |
| Ukrainian approval | +GAUA | Ukrainian Approval | |
| EAC Approval | +GAEA | EAC Approval | |
| Auxilary power supply | +C000 | no option | |
| DC power supply for aux device | +C000 | no option | |
| AC socket for aux devices | +C000 | no option | |
| Input Devices | NONE | none_ | |
| Common mode filter (for ED) | +P000 | no option | |
| DU/DT, Sine filter (for ED) | +P000 | no option | |
| Terminal Options | NONE | none_ | |
| Door Equipments | +C000 | no option | |
| Cabinet heater | +C000 | no option | |
| Cabinet light | +C000 | no option | |
| Motor heater control | +C000 | no option | |
| Emergency stop options | +C000 | no option | |
| Insulation fault sensor | +C000 | no option | |
| Cabling from top | +C000 | no option | |
| Back channel cooling | +C000 | no option | |
| Cabinet Plinth | NONE | None | |
| Empty extension segment | NONE | None | |
| Standardized cabinet solution | NONE | None | |
| Engineered cabinet solution | NONE | None | |
| Product Group | VACON | VACON | |
| Product Series | 0100 | Vacon 100 series | |
| Phase | -3L | 3 Phase AC Input | |
| Customized | +BM2H | Vacon 100-FLOW | |
| Main Circuit | +M000 | NONE | |
| Firmware | +F0159 | Vacon0100-Flow Software pack | |
| Max output frequency | NONE | None | |
| Terminal Box | +T000 | NONE | |
| Bypass Control Operation Mode | NONE | none_ | |
| Bypass Input Type | NONE | none_ | |
| Bypass power connection type | NONE | none_ | |
| CE approval | +GACE | CE Approval (+GACE) | |
| ATEX Approval | NONE | None | |
| County Specific Approval | NONE | None | |
| Warrenty time | +WT01 | Warranty 12/18 months (+WT01) | |
| Frame Size | MR04 | Frame 04 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Modelcode01 | VACON0100-3L-0004-5 | ||
| Modelcode02 | -FLOW+SBF4+SRBT+FL03+DPAP+DLES | ||
| Calculated Net Weight [kg] | 6 | ||
| Calculated Gross Weight [kg] | 7 | ||
| Motor Power Low Overload [kW] | 1.5 | 1.5 | |
| Dimensions WxHxD [mm] net | 128 X 328 X 190 | 128 X 328 X 190 | |
| Dimensions WxHxD [mm] Gross | 175 X 384 X 232 | 175 X 384 X 232 | |
| Continuous Current (NO) [A] | 4.8 | 4.8 | |
| Motor Power HP Low Overload | 2 | 2 | |
| Typecode Part 1 | 70-AB3L00045W04B220BM2H | ||
| Typecode Part 2 | -00119839 | ||
| Stockcode part 1 | 70-AB3L00045W04B220BM2H | ||
| Stockcode part 2 | -00119839 | ||
| check if complete | OK | OK | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Help Counter | 30 | ||
| Help Counter | 2 | ||
| Calculated Net Weight | 6 | ||
| Salestext | MR04-0004-5+IP21+EMC2 | MR04-0004-5+IP21+EMC2 | |
| Sub family identification | NONE | Normal customer ordered | |
| Recommended Plant | ERR01 | ERR01 | |
| ECCN US | 3A999.a | 3A999.a | |
| ECCN EU | Y901 | Y901 |
