YPS282012 7TCA298010R0964 THOMAS AND BETTS DERIV. AND HARNESSFLEX NYL NGR NC282012
YPS282012
7TCA298010R0964
THOMAS AND BETTS
150 Pcs.
Automation > Coupler for corrugated plastic hoses
Harnessflex
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

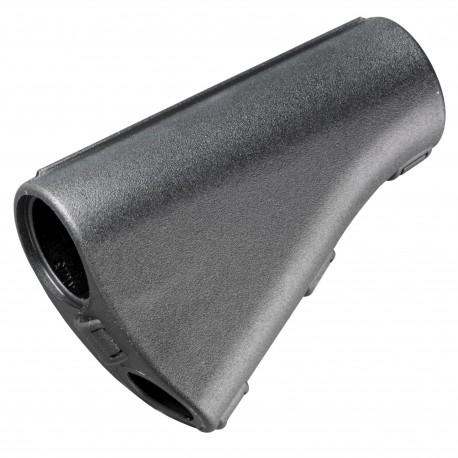

Configured as a Thomas And Betts deriv. and harnessflex nyl ngr nc282012, this Y-shaped hinged conduit joiner provides a dependable method for splitting protective cable protection pathways across automated systems. It accommodates multiple conduit dimensions within a unified routing layout. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: YPS282012
- Product ID: 7TCA298010R0964
- Color: Black
- Material: Polyamide/Nylon
- Size: Conduit Sizes A: NC28/NW23, B: NC20/NW17, C: NC12/NW10
More info
▲- Extended Product Type:
- YPS282012
- Product ID:
- 7TCA298010R0964
- EAN:
- 5020963021718
- Catalog Description:
- Y PIECE BLACK NYL NC28X20X12 10PK
- Long Description:
- Hinged Conduit Joiner, Y-Shape, Conduit Size A: NC28/NW23, Size B: NC20/NW17, Size C: NC12/NW10, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
Additional Information
- Application:
- Designed to Snap Together Over All Types of Slit and Unslit Conduit, Maintaining Maximum Conduit Bore
- Product Type:
- Y-Shaped Hinged Conduit Joiner
Ordering
- EAN:
- 5020963021718
- UPC:
- 786210254579
- Customs Tariff Number:
- 3917400090
Technical
- Number of Batteries:
- 0
- Color:
- Black
- Material:
- Polyamide/Nylon
- Size:
- Conduit Sizes A: NC28/NW23, B: NC20/NW17, C: NC12/NW10
Environmental
- WEEE Category:
- Product Not in WEEE Scope
Container Information
- Package Level 1 Units:
- 150 piece
- Package Level 1 Height:
- 7.09 in
180 mm
- Package Level 1 Depth / Length:
- 14.76 in
375 mm
- Package Level 1 Width:
- 15.16 in
385 mm
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- YPS282012
- Instructions and Manuals:
- YPS282012
- Declaration of Conformity - CE:
- 9AKK107492A9616
Classifications
- UNSPSC:
- 39131717
