View larger
Images are for illustrative purposes only. Please refer to data sheet for details

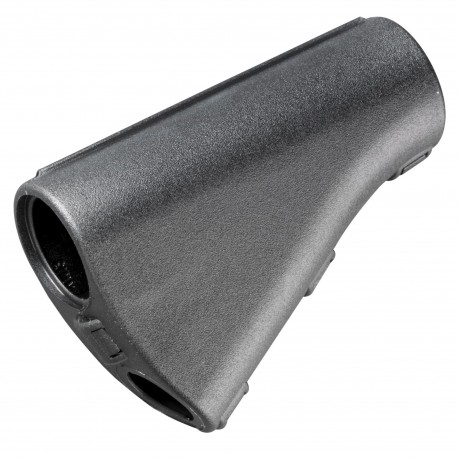

YPS202012 7TCA298010R0946 THOMAS AND BETTS DERIV. AND HARNESSFLEX NYL NGR NC202012
YPS202012
7TCA298010R0946
THOMAS AND BETTS
500 Pcs.
DERIV. AND HARNESSFLEX NYL NGR NC202012
Y PIECE BLACK NYL NC20X20X12
Automation > Coupler for corrugated plastic hoses
Harnessflex
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Extended Product Type:
- YPS202012
- Product ID:
- 7TCA298010R0946
- EAN:
- 5020963021206
- Catalog Description:
- Y PIECE BLACK NYL NC20X20X12
- Long Description:
- Hinged Conduit Joiner, Y-Shape, Conduit Size A: NC20/NW17, Size B: NC20/NW17, Size C: NC12/NW10, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
Additional Information
- Application:
- Designed to Snap Together Over All Types of Slit and Unslit Conduit, Maintaining Maximum Conduit Bore
- Product Type:
- Y-Shaped Hinged Conduit Joiner
Ordering
- EAN:
- 5020963021206
- UPC:
- 786210254470
- Customs Tariff Number:
- 3917400090
Dimensions
- Product Net Weight:
- .018lb
8.163 g
Technical
- Number of Batteries:
- 0
- Color:
- Black
- Material:
- Polyamide/Nylon
- Size:
- Conduit Sizes A: NC20/NW17, B: NC20/NW17, C: NC12/NW10
Environmental
- WEEE Category:
- Product Not in WEEE Scope
Container Information
- Package Level 2 Units:
- 500 piece
- Package Level 2 Height:
- 14 in
356 mm
- Package Level 2 Depth / Length:
- 13 in
330 mm
- Package Level 2 Width:
- 14 in
356 mm
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- YPS202012
- Instructions and Manuals:
- YPS202012
- Declaration of Conformity - CE:
- 9AKK107492A9616
Classifications
- ETIM 7:
- EC001172 - Coupler for corrugated plastic hoses
- UNSPSC:
- 39131717
