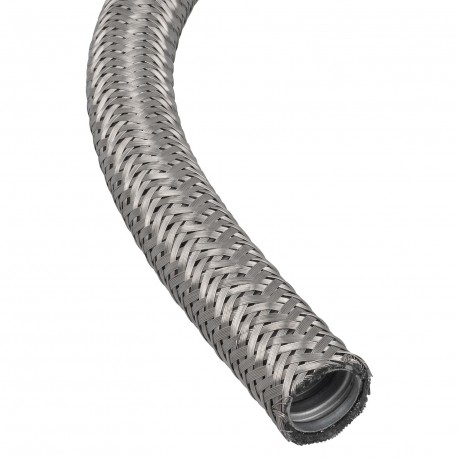

THOMAS AND BETTS SPLHCB50/25M SPLHCB50/25M 7TCA296100R0177 THOMAS AND BETTS SPLHCB50 25M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPLHCB50/25M 7TCA296100R0177 THOMAS AND BETTS SPLHCB50 25M

SPLHCB50/25M

7TCA296100R0177

THOMAS AND BETTS

25 m.

SPLHCB50 25M 50MM GS-TPR COND SS BRD 25M-BL

Automation > Protective metallic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

SPLHCB50/25M 7TCA296100R0177 Thomas And Betts splhcb50 25m is a heavy-duty liquid tight conduit designed to protect industrial power and control cables operating in extreme temperature environments. Protective conduits ensure continuous operational safety by resisting thermal fluctuations and mechanical wear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5020963012266
  • Customs Tariff Number: 7412200000
  • Product Net Weight: 63.8 lb 28.934 kg
  • Package Level 2 Units: 1 piece
  • Package Level 2 Width: 1 in 25 mm
  • Package Level 2 Height: 1 in 25 mm
  • Package Level 2 Depth / Length: 1 in 25 mm
  • Application: Liquid Tight - Extreme Temperature Environments
  • Brand / Label: Adaptaflex
  • Color: Black
  • Flexibility: Medium
  • Inside Diameter: 40.4 mm
  • Material: Galvanized Steel Core with Thermoplastic Rubber Cover
  • Nominal Size: 1-1/2 in NC50
  • Number of Batteries: 0
  • Outside Diameter: 47.9 mm

More info

▲

Ordering

EAN:5020963012266
Customs Tariff Number:7412200000

Dimensions

Product Net Weight:63.8 lb
28.934 kg

Container Information

Package Level 2 Units:1 piece
Package Level 2 Width:1 in
25 mm
Package Level 2 Height:1 in
25 mm
Package Level 2 Depth / Length:1 in
25 mm

Additional Information

Application:Liquid Tight - Extreme Temperature Environments
Brand / Label:Adaptaflex
Color:Black
Flexibility:Medium
Inside Diameter:40.4 mm
Material:Galvanized Steel Core with Thermoplastic Rubber Cover
Nominal Size:1-1/2 in
NC50
Number of Batteries:0
Outside Diameter:47.9 mm
Product Name:FITTINGS
Product Type:Extreme Temperature Flexible Conduit
Radius:240 mm
UPC:786210274768

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:SPLHCB50/25M
Declaration of Conformity - CE:9AKK107492A9618
Instructions and Manuals:SPLHCB50/25M

Classifications

ETIM 6:EC001179 - Protective metallic hose
ETIM 7:EC001179 - Protective metallic hose
UNSPSC:39131706
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):5543 >> Liquid Tight Conduit
