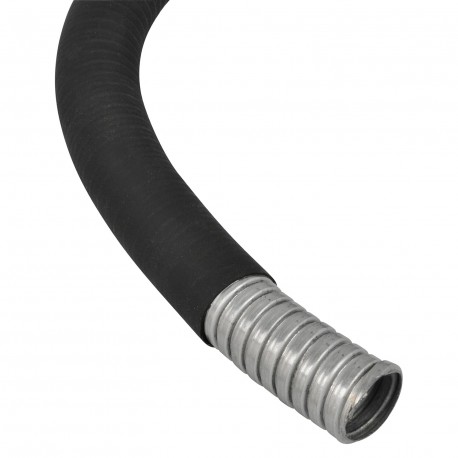

SPLHCB25/25M 7TCA296100R0171 THOMAS AND BETTS STL BRAIDED SPLHC25 FLEX 25M
SPLHCB25/25M
7TCA296100R0171
THOMAS AND BETTS
25 m.
Automation > Protective metallic hose
Adaptaflex cable protection and cable gland
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A braided flexible conduit from Thomas And Betts, identified by part number SPLHCB25/25M, deployed to manage and protect cable runs in complex automation setups. Raceways and conduits are standard components utilized to guard internal wiring against physical stress, crushing forces, and moisture.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- EAN: 5020963011023
- Customs Tariff Number: 8307106000
- Product Net Weight: 26.84 lb 12.172 kg
- Package Level 2 Units: 1 piece
- Package Level 2 Width: 1 in 25 mm
- Package Level 2 Height: 1 in 25 mm
- Package Level 2 Depth / Length: 1 in 25 mm
- Application: Liquid Tight - Extreme Temperature Environments
- Brand / Label: Adaptaflex
- Color: Black
- Flexibility: Medium
- Inside Diameter: 21.0 mm
- Material: Galvanized Steel Core with Thermoplastic Rubber Cover
- Nominal Size: 3/4 in NC25
- Number of Batteries: 0
- Outside Diameter: 26.4 mm
More info
▲Ordering
| EAN: | 5020963011023 |
| Customs Tariff Number: | 8307106000 |
Dimensions
| Product Net Weight: | 26.84 lb 12.172 kg |
Container Information
| Package Level 2 Units: | 1 piece |
| Package Level 2 Width: | 1 in 25 mm |
| Package Level 2 Height: | 1 in 25 mm |
| Package Level 2 Depth / Length: | 1 in 25 mm |
Additional Information
| Application: | Liquid Tight - Extreme Temperature Environments |
| Brand / Label: | Adaptaflex |
| Color: | Black |
| Flexibility: | Medium |
| Inside Diameter: | 21.0 mm |
| Material: | Galvanized Steel Core with Thermoplastic Rubber Cover |
| Nominal Size: | 3/4 in NC25 |
| Number of Batteries: | 0 |
| Outside Diameter: | 26.4 mm |
| Product Name: | flexible metal conduit |
| Product Type: | Extreme Temperature Flexible Conduit |
| Radius: | 110 mm |
| UPC: | 786210245515 |
Certificates and Declarations (Document Number)
| Data Sheet, Technical Information: | SPLHCB25/25M |
| Declaration of Conformity - CE: | 9AKK107492A9618 |
| Instructions and Manuals: | SPLHCB25/25M |
Classifications
| ETIM 6: | EC001179 - Protective metallic hose |
| ETIM 7: | EC001179 - Protective metallic hose |
| UNSPSC: | 39131706 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 5543 >> Liquid Tight Conduit |
