SPLB32/M32/A 7TCA296100R0161 THOMAS AND BETTS 1IN LTADPTR SPLHC BRAID M32 FIXED
SPLB32/M32/A
7TCA296100R0161
THOMAS AND BETTS
2 Pcs.
Automation > Screw connection for protective metallic hose
Adaptaflex cable protection and cable gland
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

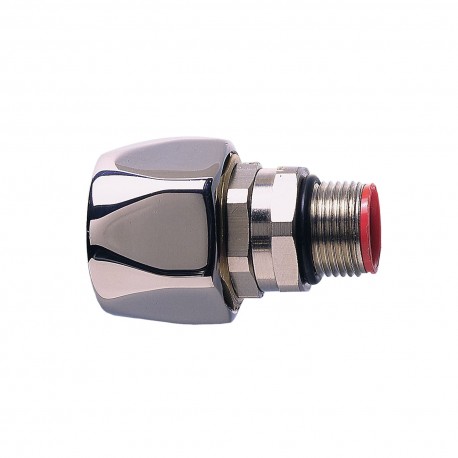

Manufactured by Thomas And Betts under part number SPLB32/M32/A, this conduit fitting with metric threads links braided or standard protective tubing directly to threaded machine entries. These robust hardware pieces ensure that cable entry points on heavy machinery remain mechanically sound and protected against wear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 5020963071843
- Customs Tariff Number: 7412200035
- Product Net Weight: .81 lb 367.347 g
- Package Level 2 Units: 2 piece
- Package Level 2 Width: 1 in 25 mm
- Package Level 2 Height: 1 in 25 mm
- Package Level 2 Depth / Length: 1 in 25 mm
- Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
- Brand / Label: Adaptaflex
- Cable Entry Position: M32 Thread
- Color: Metallic
- Material: Brass
- Number of Batteries: 0
- Product Name: brass fitting for conduit
- Product Type: Conduit Fitting with Metric Threads
- Size: 1 Inch
More info
▲Ordering
| EAN: | 5020963071843 |
| Customs Tariff Number: | 7412200035 |
Dimensions
| Product Net Weight: | .81 lb 367.347 g |
Container Information
| Package Level 2 Units: | 2 piece |
| Package Level 2 Width: | 1 in 25 mm |
| Package Level 2 Height: | 1 in 25 mm |
| Package Level 2 Depth / Length: | 1 in 25 mm |
Additional Information
| Application: | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Brand / Label: | Adaptaflex |
| Cable Entry Position: | M32 Thread |
| Color: | Metallic |
| Material: | Brass |
| Number of Batteries: | 0 |
| Product Name: | brass fitting for conduit |
| Product Type: | Conduit Fitting with Metric Threads |
| Size: | 1 Inch |
| Surface Finishing: | Nickel Plated |
| UPC: | 786210245461 |
Certificates and Declarations (Document Number)
| Data Sheet, Technical Information: | SPLB32/M32/A |
| Declaration of Conformity - CE: | 9AKK107492A9618 |
| Instructions and Manuals: | SPLB32/M32/A |
Classifications
| ETIM 6: | EC001180 - Screw connection for protective metallic hose |
| ETIM 7: | EC001180 - Screw connection for protective metallic hose |
| UNSPSC: | 39121311 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 4441 >> Electrical fittings |
