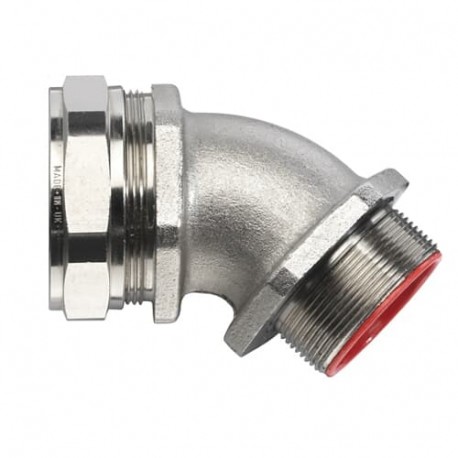

THOMAS AND BETTS SPL16/M16/45 SPL16/M16/45 7TCA296030R0086 THOMAS AND BETTS M TYPE 45 DEGREE ELBOW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPL16/M16/45 7TCA296030R0086 THOMAS AND BETTS M TYPE 45 DEGREE ELBOW

SPL16/M16/45

7TCA296030R0086

THOMAS AND BETTS

10 Pcs.

M TYPE 45 DEGREE ELBOW 45D NPB FITTING M16 16MM-MET

Automation > Screw connection for protective metallic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to facilitate directional changes in wire routing, this Thomas And Betts M type 45 degree elbow joins flexible conduit systems to threaded panel ports at an angle. Angled fittings reduce stress on conduits and cables when navigating tight installation layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5020963052378
  • Customs Tariff Number: 7412200000
  • Product Net Weight: .12 lb 54.422 g
  • Package Level 2 Units: 10 piece
  • Package Level 2 Width: 1 in 25 mm
  • Package Level 2 Height: 1 in 25 mm
  • Package Level 2 Depth / Length: 1 in 25 mm
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: M16 Thread
  • Color: Metallic
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: ADAPTAFLEX
  • Product Type: Liquid Tight Non-Metallic Fitting
  • Size: NC 16mm

More info

▲

Ordering

EAN:5020963052378
Customs Tariff Number:7412200000

Dimensions

Product Net Weight:.12 lb
54.422 g

Container Information

Package Level 2 Units:10 piece
Package Level 2 Width:1 in
25 mm
Package Level 2 Height:1 in
25 mm
Package Level 2 Depth / Length:1 in
25 mm

Additional Information

Application:For Insertion into Threaded Entries or Knockout to Connect Conduit
Brand / Label:Adaptaflex
Cable Entry Position:M16 Thread
Color:Metallic
Material:Brass
Number of Batteries:0
Product Name:ADAPTAFLEX
Product Type:Liquid Tight Non-Metallic Fitting
Size:NC 16mm
Surface Finishing:Nickel Plated
UPC:786210259024

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:SPL16/M16/45
Declaration of Conformity - CE:9AKK107492A9618
Instructions and Manuals:SPL16/M16/45

Classifications

ETIM 6:EC001180 - Screw connection for protective metallic hose
ETIM 7:EC001180 - Screw connection for protective metallic hose
UNSPSC:39121311
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):4441 >> Electrical fittings
