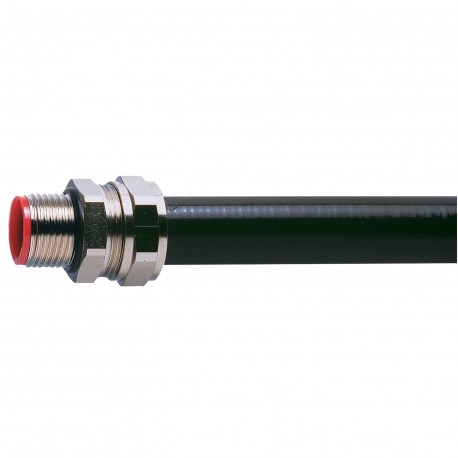

THOMAS AND BETTS SPL10/M16/M SPL10/M16/M 7TCA296030R0049 THOMAS AND BETTS BRASS LQT MULTIPT ADPTR 1/4IN M16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPL10/M16/M 7TCA296030R0049 THOMAS AND BETTS BRASS LQT MULTIPT ADPTR 1/4IN M16

SPL10/M16/M

7TCA296030R0049

THOMAS AND BETTS

10 Pcs.

BRASS LQT MULTIPT ADPTR 1/4IN M16 STR SWL NPB FITTING M16 10MM-MET

Automation > Screw connection for protective metallic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Thomas And Betts SPL10/M16/M liquid tight non-metallic fitting serves as a reliable connector for joining protective conduits to metric-threaded enclosure ports. Such components are routinely implemented across automated production lines to maintain clean, protected routing pathways for critical control wiring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5020963008603
  • Customs Tariff Number: 7412200000
  • Product Net Weight: .1 lb 45.351 g
  • Package Level 2 Units: 10 piece
  • Package Level 2 Width: 1 in 25 mm
  • Package Level 2 Height: 1 in 25 mm
  • Package Level 2 Depth / Length: 1 in 25 mm
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: M16 Thread
  • Color: Metallic
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: ADAPTAFLEX
  • Product Type: Liquid Tight Non-Metallic Fitting
  • Size: 1/4 Inch

More info

▲

Ordering

EAN:5020963008603
Customs Tariff Number:7412200000

Dimensions

Product Net Weight:.1 lb
45.351 g

Container Information

Package Level 2 Units:10 piece
Package Level 2 Width:1 in
25 mm
Package Level 2 Height:1 in
25 mm
Package Level 2 Depth / Length:1 in
25 mm

Additional Information

Application:For Insertion into Threaded Entries or Knockout to Connect Conduit
Brand / Label:Adaptaflex
Cable Entry Position:M16 Thread
Color:Metallic
Material:Brass
Number of Batteries:0
Product Name:ADAPTAFLEX
Product Type:Liquid Tight Non-Metallic Fitting
Size:1/4 Inch
Surface Finishing:Nickel Plated
UPC:786210258980

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:9AKK107492A2426
Declaration of Conformity - CE:9AKK107492A9618
Instructions and Manuals:SPL10/M16/M

Classifications

ETIM 6:EC001180 - Screw connection for protective metallic hose
ETIM 7:EC001180 - Screw connection for protective metallic hose
UNSPSC:39121311
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):4441 >> Electrical fittings
