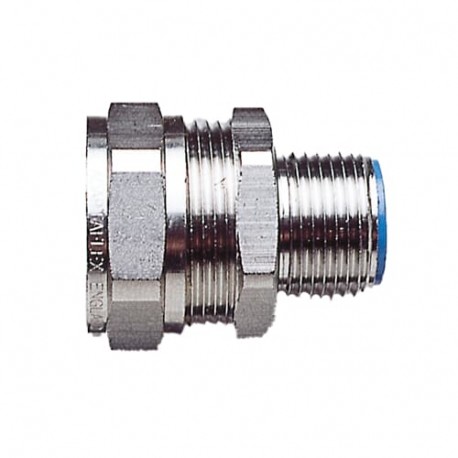

THOMAS AND BETTS SP20/050/M SP20/050/M 7TCA296020R0128 THOMAS AND BETTS 1/2 SP20 M TYPE FITTING View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SP20/050/M 7TCA296020R0128 THOMAS AND BETTS 1/2 SP20 M TYPE FITTING

SP20/050/M

7TCA296020R0128

THOMAS AND BETTS

10 Pcs.

STR SWL NPB FITTING 1/2NPT 20MM-MET

Automation > Screw connection for protective metallic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Thomas And Betts SP20/050/M is a conduit fitting with NPT threads built for insertion into threaded entries or knockouts to connect conduit systems. Plant engineers integrate such hardware into control panels and machinery housings to route and shield vulnerable electrical cabling. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: SP20/050/M
  • Product ID: 7TCA296020R0128
  • Catalog Description: 1/2 SP20 M TYPE FITTING
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: 1/2 Inch NPT Thread
  • Color: Metallic
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: BRASS FITTING FOR CONDUIT
  • Product Type: Conduit Fitting with NPT Threads
  • Size: NC 20mm
  • Surface Finishing: Nickel Plated
  • UPC: 786210249063
  • Data Sheet, Technical Information: SP20/050/M
  • Instructions and Manuals: SP20/050/M

More info

▲
  • Extended Product Type:
    SP20/050/M
  • Product ID:
    7TCA296020R0128
  • EAN:
    5020963013911
  • Catalog Description:
    1/2 SP20 M TYPE FITTING
  • Long Description:
    Nickel Plated Brass Straight Swivel Fitting with External Thread, Conduit Size 20 Millimeters, 1/2 Inch NPT Thread

Ordering

  • EAN:
    5020963013911

Dimensions

  • Product Net Weight:
    .13lb
    58.957 g

Container Information

  • Package Level 2 Units:
    10 piece
  • Package Level 2 Width:
    1 in
    25 mm
  • Package Level 2 Height:
    1 in
    25 mm
  • Package Level 2 Depth / Length:
    1 in
    25 mm

Additional Information

  • Application:
    For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label:
    Adaptaflex
  • Cable Entry Position:
    1/2 Inch NPT Thread
  • Color:
    Metallic
  • Material:
    Brass
  • Number of Batteries:
    0
  • Product Name:
    BRASS FITTING FOR CONDUIT
  • Product Type:
    Conduit Fitting with NPT Threads
  • Size:
    NC 20mm
  • Surface Finishing:
    Nickel Plated
  • UPC:
    786210249063

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC001180 - Screw connection for protective metallic hose
  • ETIM 7:
    EC001180 - Screw connection for protective metallic hose
  • UNSPSC:
    39121311
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    4441 >> Electrical fittings
