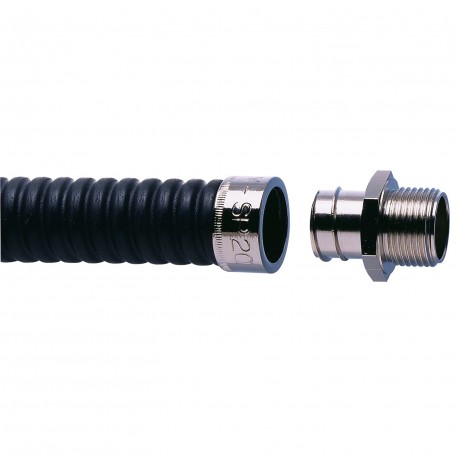

THOMAS AND BETTS SP16/M20/A SP16/M20/A 7TCA296020R0102 THOMAS AND BETTS M20 FITTING FOR SP16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SP16/M20/A 7TCA296020R0102 THOMAS AND BETTS M20 FITTING FOR SP16

SP16/M20/A

7TCA296020R0102

THOMAS AND BETTS

10 Pcs.

M20 FITTING FOR SP16 STR NPB FITTING M20 16MM-MET

Automation > Screw connection for protective metallic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A metric conduit fitting, part number SP16/M20/A from Thomas And Betts, provides a dependable termination point where protective conduits interface with machinery housings or control panels. Such hardware is standard across commercial and industrial installations to maintain routing integrity and safeguard electrical conductors from environmental hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5020963000775
  • Customs Tariff Number: 7412200035
  • Product Net Weight: .07 lb 31.746 g
  • Package Level 1 Units: 10 piece
  • Package Level 2 Units: 300 piece
  • Package Level 2 Width: 1 in 25 mm
  • Package Level 2 Height: 1 in 25 mm
  • Package Level 2 Depth / Length: 1 in 25 mm
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: M20 Thread
  • Color: Metallic
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: brass fitting for conduit
  • Product Type: Conduit Fitting with Metric Threads

More info

▲

Ordering

EAN:5020963000775
Customs Tariff Number:7412200035

Dimensions

Product Net Weight:.07 lb
31.746 g

Container Information

Package Level 1 Units:10 piece
Package Level 2 Units:300 piece
Package Level 2 Width:1 in
25 mm
Package Level 2 Height:1 in
25 mm
Package Level 2 Depth / Length:1 in
25 mm

Additional Information

Application:For Insertion into Threaded Entries or Knockout to Connect Conduit
Brand / Label:Adaptaflex
Cable Entry Position:M20 Thread
Color:Metallic
Material:Brass
Number of Batteries:0
Product Name:brass fitting for conduit
Product Type:Conduit Fitting with Metric Threads
Size:3/8 Inch
Surface Finishing:Nickel Plated
UPC:786210247724

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:SP16/M20/A
Declaration of Conformity - CE:9AKK107492A9618
Instructions and Manuals:SP16/M20/A

Classifications

ETIM 6:EC001180 - Screw connection for protective metallic hose
ETIM 7:EC001180 - Screw connection for protective metallic hose
UNSPSC:39121311
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):4441 >> Electrical fittings
