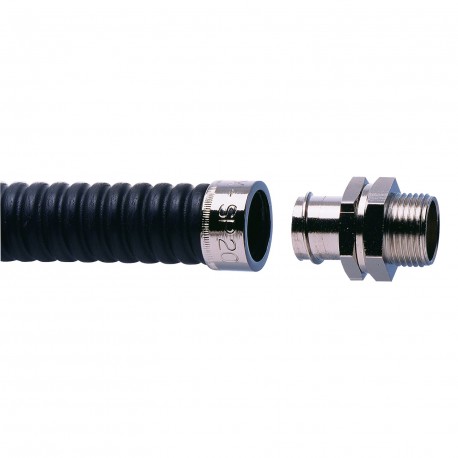

THOMAS AND BETTS SP16/M16/B SP16/M16/B 7TCA296020R0095 THOMAS AND BETTS M16 SWIVEL FITTING FOR SP16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SP16/M16/B 7TCA296020R0095 THOMAS AND BETTS M16 SWIVEL FITTING FOR SP16

SP16/M16/B

7TCA296020R0095

THOMAS AND BETTS

10 Pcs.

M16 SWIVEL FITTING FOR SP16 STR SWL NPB FITTING M16 16MM-MET

Automation > Screw connection for protective metallic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

SP16/M16/B 7TCA296020R0095 THOMAS AND BETTS M16 SWIVEL FITTING FOR SP16 is a conduit fitting with metric threads built to connect flexible metallic or non-metallic tubing securely to equipment enclosures. Swivel mechanisms in these fittings allow installers to align the conduit path easily without twisting the underlying tube during final assembly.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5020963000492
  • Customs Tariff Number: 7412200035
  • Product Net Weight: .07 lb 31.746 g
  • Package Level 2 Units: 250 piece
  • Package Level 2 Width: 1 in 25 mm
  • Package Level 2 Height: 1 in 25 mm
  • Package Level 2 Depth / Length: 1 in 25 mm
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: M16 Thread
  • Color: Metallic
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: brass fitting for conduit
  • Product Type: Conduit Fitting with Metric Threads
  • Size: 3/8 Inch

More info

▲

Ordering

EAN:5020963000492
Customs Tariff Number:7412200035

Dimensions

Product Net Weight:.07 lb
31.746 g

Container Information

Package Level 2 Units:250 piece
Package Level 2 Width:1 in
25 mm
Package Level 2 Height:1 in
25 mm
Package Level 2 Depth / Length:1 in
25 mm

Additional Information

Application:For Insertion into Threaded Entries or Knockout to Connect Conduit
Brand / Label:Adaptaflex
Cable Entry Position:M16 Thread
Color:Metallic
Material:Brass
Number of Batteries:0
Product Name:brass fitting for conduit
Product Type:Conduit Fitting with Metric Threads
Size:3/8 Inch
Surface Finishing:Nickel Plated
UPC:786210247700

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:SP16/M16/B
Declaration of Conformity - CE:9AKK107492A9618
Instructions and Manuals:SP16/M16/B

Classifications

ETIM 6:EC001180 - Screw connection for protective metallic hose
ETIM 7:EC001180 - Screw connection for protective metallic hose
UNSPSC:39121311
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):4441 >> Electrical fittings
