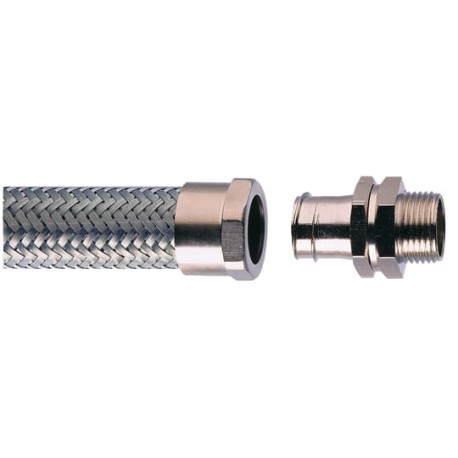

THOMAS AND BETTS S40/M40/B S40/M40/B 7TCA296010R0148 THOMAS AND BETTS RAC. REC. ROSC. GIR. M40/ P/S40 & SS40 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S40/M40/B 7TCA296010R0148 THOMAS AND BETTS RAC. REC. ROSC. GIR. M40/ P/S40 & SS40

S40/M40/B

7TCA296010R0148

THOMAS AND BETTS

2 Pcs.

RAC. REC. ROSC. GIR. M40/ P/S40 & SS40 STR SWL NPB FITTING M40 40MM-MET

Automation > Screw connection for protective metallic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Thomas And Betts swivel conduit fitting facilitates dynamic alignment when attaching raceway systems to machine knockouts. Engineers specify these metric brass connectors to ease installation challenges in crowded control panels. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: S40/M40/B
  • Product ID: 7TCA296010R0148
  • Catalog Description: M40 SWIVEL FITTING FOR S40
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: M40 Thread
  • Color: Metallic
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: brass fitting for conduit
  • Product Type: Conduit Fitting with Metric Threads
  • Size: 1-1/4 Inch
  • Surface Finishing: Nickel Plated
  • UPC: 786210251547
  • Data Sheet, Technical Information: S40/M40/B
  • Instructions and Manuals: S40/M40/B

More info

▲
  • Extended Product Type:
    S40/M40/B
  • Product ID:
    7TCA296010R0148
  • EAN:
    5020963006487
  • Catalog Description:
    M40 SWIVEL FITTING FOR S40
  • Long Description:
    Nickel Plated Brass Straight Fitting with Swivel External Threads, Nominal Conduit Size 40 Millimeters, Metric Thread Size M40

Ordering

  • EAN:
    5020963006487

Dimensions

  • Product Net Weight:
    .6lb
    272.109 g

Container Information

  • Package Level 2 Units:
    2 piece
  • Package Level 2 Width:
    1 in
    25 mm
  • Package Level 2 Height:
    1 in
    25 mm
  • Package Level 2 Depth / Length:
    1 in
    25 mm

Additional Information

  • Application:
    For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label:
    Adaptaflex
  • Cable Entry Position:
    M40 Thread
  • Color:
    Metallic
  • Material:
    Brass
  • Number of Batteries:
    0
  • Product Name:
    brass fitting for conduit
  • Product Type:
    Conduit Fitting with Metric Threads
  • Size:
    1-1/4 Inch
  • Surface Finishing:
    Nickel Plated
  • UPC:
    786210251547

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC001180 - Screw connection for protective metallic hose
  • ETIM 7:
    EC001180 - Screw connection for protective metallic hose
  • UNSPSC:
    39121311
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    4441 >> Electrical fittings
