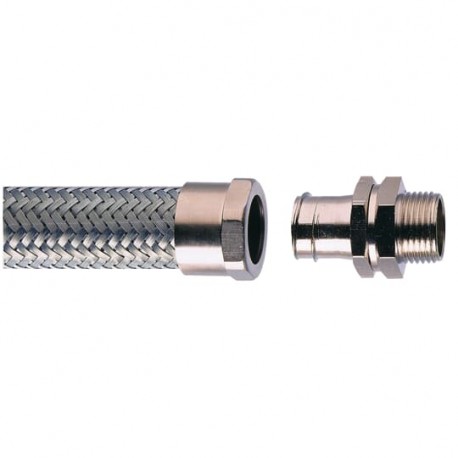

THOMAS AND BETTS S16/M16/B S16/M16/B 7TCA296010R0045 THOMAS AND BETTS RAC. REC. ROSC. GIR. M16/ P/S16 & SS16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S16/M16/B 7TCA296010R0045 THOMAS AND BETTS RAC. REC. ROSC. GIR. M16/ P/S16 & SS16

S16/M16/B

7TCA296010R0045

THOMAS AND BETTS

10 Pcs.

RAC. REC. ROSC. GIR. M16/ P/S16 & SS16 STR SWL NPB FITTING M16 16MM-MET

Automation > Screw connection for protective metallic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Thomas And Betts S16/M16/B swivel conduit fitting creates a dependable connection point between flexible wiring conduits and threaded enclosure knockouts. These hardware components are routinely deployed in commercial and industrial settings to protect electrical runs from physical strain. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: S16/M16/B
  • Product ID: 7TCA296010R0045
  • Catalog Description: M16 SWIVEL FITTING FOR S16
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: M16 Thread
  • Color: Metallic
  • Material: Brass
  • Number of Batteries: 0
  • Product Name: brass fitting for conduit
  • Product Type: Conduit Fitting with Metric Threads
  • Size: 3/8 Inch
  • Surface Finishing: Nickel Plated
  • UPC: 786210251356
  • Data Sheet, Technical Information: S16/M16/B
  • Instructions and Manuals: S16/M16/B

More info

▲
  • Extended Product Type:
    S16/M16/B
  • Product ID:
    7TCA296010R0045
  • EAN:
    5020963003479
  • Catalog Description:
    M16 SWIVEL FITTING FOR S16
  • Long Description:
    Nickel Plated Brass Straight Fitting with Swivel External Threads, Nominal Conduit Size 16 Millimeters, Metric Thread Size M16

Ordering

  • EAN:
    5020963003479

Dimensions

  • Product Net Weight:
    .07lb
    31.746 g

Container Information

  • Package Level 1 Units:
    10 piece
  • Package Level 2 Units:
    400 piece
  • Package Level 2 Width:
    14 in
    356 mm
  • Package Level 2 Height:
    6 in
    152 mm
  • Package Level 2 Depth / Length:
    14 in
    356 mm

Additional Information

  • Application:
    For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label:
    Adaptaflex
  • Cable Entry Position:
    M16 Thread
  • Color:
    Metallic
  • Material:
    Brass
  • Number of Batteries:
    0
  • Product Name:
    brass fitting for conduit
  • Product Type:
    Conduit Fitting with Metric Threads
  • Size:
    3/8 Inch
  • Surface Finishing:
    Nickel Plated
  • UPC:
    786210251356

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC001180 - Screw connection for protective metallic hose
  • ETIM 7:
    EC001180 - Screw connection for protective metallic hose
  • UNSPSC:
    39121311
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    4441 >> Electrical fittings

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
