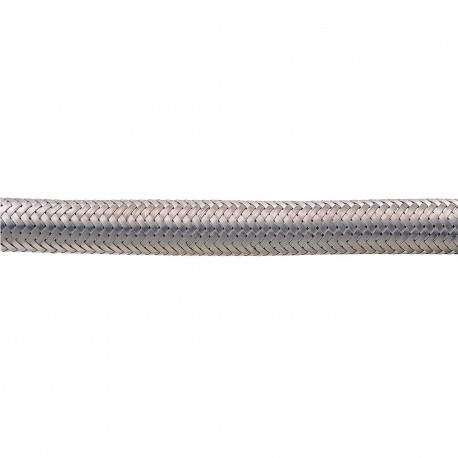

THOMAS AND BETTS PRCSSS54/BL/25M PRCSSS54/BL/25M 7TCA296100R0127 THOMAS AND BETTS PRCS54 SS/STL BRD CONDUIT25M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PRCSSS54/BL/25M 7TCA296100R0127 THOMAS AND BETTS PRCS54 SS/STL BRD CONDUIT25M

PRCSSS54/BL/25M

7TCA296100R0127

THOMAS AND BETTS

25 m.

PRCS54 SS/STL BRD CONDUIT25M PA COATED TUBE. STEEL MESH, DN54, 54MM PA6 CONDUIT SS BRD 25M - BL

Automation > Corrugated plastic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy-duty cable protection is achieved using a Thomas And Betts conduit equipped with an external metallic braid to withstand severe physical demands in public infrastructure and industrial settings. Armored conduit designs offer enhanced resistance to crushing, cutting, and high-temperature environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5020963028304
  • Customs Tariff Number: 3926909990
  • Product Net Weight: 52.64 lb 23.873 kg
  • Package Level 1 Units: 1 piece
  • Package Level 2 Units: 1 piece
  • Package Level 2 Width: 1 in 25 mm
  • Package Level 2 Height: 1 in 25 mm
  • Package Level 2 Depth / Length: 1 in 25 mm
  • Application: Indoors, Public Areas, Rail Infrastructure
  • Brand / Label: Adaptaflex
  • Color: Black
  • Flexibility: High
  • Inside Diameter: 35.1 mm
  • Material: Modified Polyamide/Nylon 6 with Stainless Steel Overbraid
  • Nominal Size: 42 mm
  • Number of Batteries: 0

More info

▲

Ordering

EAN:5020963028304
Customs Tariff Number:3926909990

Dimensions

Product Net Weight:52.64 lb
23.873 kg

Container Information

Package Level 1 Units:1 piece
Package Level 2 Units:1 piece
Package Level 2 Width:1 in
25 mm
Package Level 2 Height:1 in
25 mm
Package Level 2 Depth / Length:1 in
25 mm

Additional Information

Application:Indoors, Public Areas, Rail Infrastructure
Brand / Label:Adaptaflex
Color:Black
Flexibility:High
Inside Diameter:35.1 mm
Material:Modified Polyamide/Nylon 6 with Stainless Steel Overbraid
Nominal Size:42 mm
Number of Batteries:0
Outside Diameter:42.5 mm
Product Name:"flexible conduit, nylon"
Product Type:Standard Weight Conduit with Coarse Pitch and Stainless Steel Overbraid
Radius:90 mm
Special Functions:Very High UV Protection
UPC:786210243665

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:PRCSSS54/25M
Declaration of Conformity - CE:9AKK107492A9618
Instructions and Manuals:PRCSSS54/25M

Classifications

ETIM 6:EC001175 - Corrugated plastic hose
ETIM 7:EC001175 - Corrugated plastic hose
UNSPSC:39131706
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):5535 >> Electrical conduit
