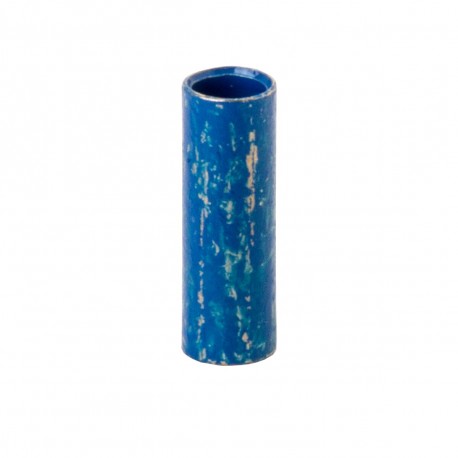

THOMAS AND BETTS GSC710 GSC710 7TAI029060R0021 THOMAS AND BETTS SHIELD-KON CONNECTOR RING View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GSC710 7TAI029060R0021 THOMAS AND BETTS SHIELD-KON CONNECTOR RING

GSC710

7TAI029060R0021

THOMAS AND BETTS

50 Pcs.

SHIELD-KON CONNECTOR RING TWO-PIECE OUTER SLV CONN BLUE RND

Automation > Connection for screened wires
Terminals

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed from durable copper with a blue finish, the Thomas And Betts GSC710 7TAI029060R0021 SHIELD-KON CONNECTOR RING functions as a two-piece outer sleeve connector for grounding applications. This terminal ring is routinely applied in heavy-duty electrical setups to secure cable shielding and ensure reliable earth continuity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: GSC710
  • Product ID: 7TAI029060R0021
  • Catalog Description: TWO-PIECE OUTER SLV CONN BLUE RND
  • UPC: 786210814087
  • Selling Unit of Measure: each
  • Brand / Label: Sta-Kon
  • Color: Blue
  • Effective Date: 19680424
  • Material: Copper
  • Product Name: COPPER GROUNDING RING
  • Product Type: Two-Piece Outer Sleeve Connector
  • Sub Brand / Label: Shield-Kon
  • Data Sheet, Technical Information: GSC710
  • Instructions and Manuals: GSC710
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals

More info

▲
  • Extended Product Type:
    GSC710
  • Product ID:
    7TAI029060R0021
  • EAN:
    5414363114918
  • Catalog Description:
    TWO-PIECE OUTER SLV CONN BLUE RND
  • Long Description:
    Two Piece Outer Sleeve Connector for Round Range, Length 15.2mm, Inner Diameter 18.03mm, Outer Diameter 20.07mm, Color Blue, Copper Alloy

Ordering

  • EAN:
    5414363114918
  • UPC:
    786210814087
  • Country of Origin:
    United States (US)
  • Customs Tariff Number:
    7419805050
  • Selling Unit of Measure:
    each

Container Information

  • Package Level 1 Units:
    50 piece
  • Package Level 1 Width:
    3 in
    76 mm
  • Package Level 1 Height:
    3.5 in
    89 mm
  • Package Level 1 Depth / Length:
    3 in
    76 mm
  • Package Level 2 Units:
    250 piece
  • Package Level 2 Width:
    3.12 in
    79 mm
  • Package Level 2 Height:
    9.75 in
    248 mm
  • Package Level 2 Depth / Length:
    7 in
    178 mm

Additional Information

  • Brand / Label:
    Sta-Kon
  • Color:
    Blue
  • Effective Date:
    19680424
  • Material:
    Copper
  • Product Name:
    COPPER GROUNDING RING
  • Product Type:
    Two-Piece Outer Sleeve Connector
  • Special Functions:
    Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables. The sleeves are color coded according to their size. Applications in communications, aerospace, and electronics.
  • Sub Brand / Label:
    Shield-Kon

Certificates and Declarations (Document Number)

  • Data Sheet, Technical Information:
    GSC710
  • Instructions and Manuals:
    GSC710

Classifications

  • ETIM 6:
    EC002650 - Connection for screened wires
  • ETIM 7:
    EC002650 - Connection for screened wires
  • ETIM 8:
    EC002650 - Connection for screened wires
  • UNSPSC:
    39121432
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    4603 >> Electrical terminals
