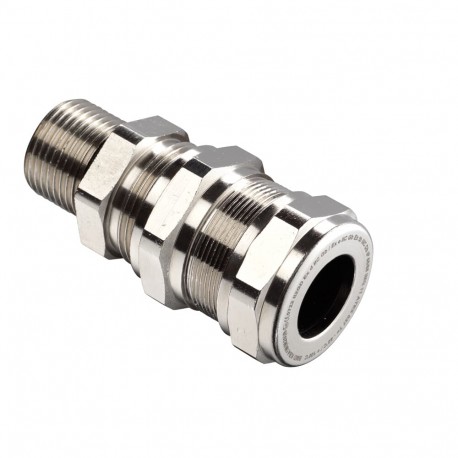

THOMAS AND BETTS EXN05MSC1 EXN05MSC1 7TCA297180R0042 THOMAS AND BETTS ATEX M25 EXD CII / EXD PRESS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EXN05MSC1 7TCA297180R0042 THOMAS AND BETTS ATEX M25 EXD CII / EXD PRESS

EXN05MSC1

7TCA297180R0042

THOMAS AND BETTS

15 Pcs.

ATEX M25 EXD CII / EXD PRESS ATEX PRESS C1, M25, 6-12, LATON NIQ M25 N/P BRASS D/C GLAND 6-12MM

Cables > Cable gland
Cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Thomas And Betts, the EXN05MSC1 double compression brass gland safely secures cables in hazardous and demanding industrial locations. Double compression glands offer superior mechanical retention and environmental sealing for armored cables entering heavy-duty enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: EXN05MSC1
  • Product ID: 7TCA297180R0042
  • Catalog Description: M25 N/P BRASS D/C GLAND 6-12MM
  • Product Type: Double Compression Gland
  • UPC: 786210194479
  • Number of Batteries: 0
  • Color: Metallic
  • Material: Brass
  • Size: M25
  • WEEE Category: Product Not in WEEE Scope
  • Data Sheet, Technical Information: TDS000056
  • Instructions and Manuals: 9AKK107046A6092
  • EAN: 5011949230149
  • Customs Tariff Number: 7412200035
  • Package Level 1 Units: 15 piece
  • Package Level 1 Height: 3.54 in 90 mm

More info

▲
  • Extended Product Type:
    EXN05MSC1
  • Product ID:
    7TCA297180R0042
  • EAN:
    5011949230149
  • Catalog Description:
    M25 N/P BRASS D/C GLAND 6-12MM
  • Long Description:
    Double Compression Cable Gland, M25 Thread, Flameproof Ex d and Increased Safety Ex e, Suitable for use with SWA, SWB, and AWA Conduit, IP66 Rating, Inner Cable Range 6 to 12mm, Outer Cable Range 8.5 to 16mm, Nickel Plated Brass

Additional Information

  • Application:
    For Use with SWA (Steel Wired Armoured), AWA (Aluminum Wired Armour), and SWB (Steel Wired Braid) Conduit to Provide Secure Cable Connections Through Knockouts and Threaded Entries
  • Product Type:
    Double Compression Gland

Ordering

  • EAN:
    5011949230149
  • UPC:
    786210194479
  • Customs Tariff Number:
    7412200035

Technical

  • Number of Batteries:
    0
  • Color:
    Metallic
  • Material:
    Brass
  • Size:
    M25

Environmental

  • WEEE Category:
    Product Not in WEEE Scope

Container Information

  • Package Level 1 Units:
    15 piece
  • Package Level 1 Height:
    3.54 in
    90 mm
  • Package Level 1 Depth / Length:
    7.09 in
    180 mm
  • Package Level 1 Width:
    3.54 in
    90 mm
  • Package Level 2 Units:
    90 piece
  • Package Level 2 Height:
    7.87 in
    200 mm
  • Package Level 2 Depth / Length:
    11.81 in
    300 mm
  • Package Level 2 Width:
    11.81 in
    300 mm

Certificates and Declarations (Document Number)

Classifications

  • UNSPSC:
    39121431
