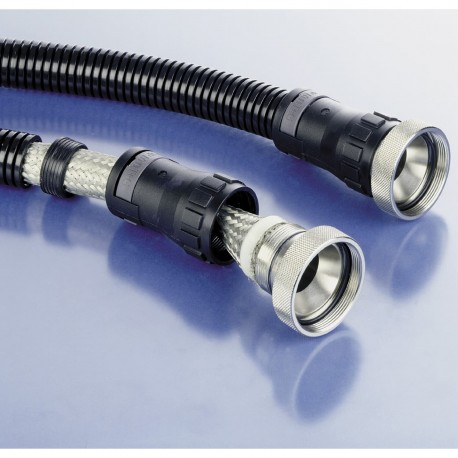

THOMAS AND BETTS BVIMV-U247-14 BVIMV-U247-14 7TAA292330R0030 THOMAS AND BETTS EMCFix,1",NW17,IP68,bl View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BVIMV-U247-14 7TAA292330R0030 THOMAS AND BETTS EMCFix,1",NW17,IP68,bl

BVIMV-U247-14

7TAA292330R0030

THOMAS AND BETTS

10 Pcs.

EMCFix,1",NW17,IP68,bl EMC FTNG PA6/AL 1IN NW17 BLK

Automation > Screw connection for corrugated plastic hose
PMA cable protection

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by Thomas And Betts as part number BVIMV-U247-14, this plastic fitting for conduit provides secure cable protection in demanding environments.

Fittings of this style are routinely deployed in industrial wiring layouts to join flexible tubing safely to enclosures, bulkheads, or threaded ports while safeguarding internal cables from environmental hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: BVIMV-U247-14
  • Product ID: 7TAA292330R0030
  • Catalog Description: EMC FTNG PA6/AL 1IN NW17 BLK
  • Application: For Cable Protection Systems In a Wide Range of Applications
  • Brand / Label: PMA
  • Color: Black
  • Insulation Class: IP68
  • Material: Polyamide 6 with Nickel Plated Brass Threads
  • Number of Batteries: 0
  • Product Name: PLASTIC FITTING FOR CONDUIT
  • Product Type: Connectors-Straight
  • Size: NW17 ; 1 inch Thread
  • Temperature Range: -40 to 105 °C Short Term 160 °C
  • UPC: 786209950093
  • Data Sheet, Technical Information: BVIMV-U247-14
  • Instructions and Manuals: BVIMV-U247-14

More info

▲
  • Extended Product Type:
    BVIMV-U247-14
  • Product ID:
    7TAA292330R0030
  • EAN:
    7630030215827
  • Catalog Description:
    EMC FTNG PA6/AL 1IN NW17 BLK
  • Long Description:
    EMVFIX EMC Black Female Connector, Material - Polyamide and Nickel-Plated Aluminum, Thread Type - UNEF, Thread Size - 1 Inch - 20, Nominal Width/Condiut Size - 17, Thread Length - 14

Ordering

  • EAN:
    7630030215827
  • Customs Tariff Number:
    3917400090

Dimensions

  • Product Net Weight:
    .03lb
    13.605 g

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 2 Units:
    60 piece
  • Package Level 2 Width:
    11.811 in
    300 mm
  • Package Level 2 Height:
    7.874 in
    200 mm
  • Package Level 2 Depth / Length:
    15.748 in
    400 mm

Additional Information

  • Application:
    For Cable Protection Systems In a Wide Range of Applications
  • Brand / Label:
    PMA
  • Color:
    Black
  • Insulation Class:
    IP68
  • Material:
    Polyamide 6 with Nickel Plated Brass Threads
  • Number of Batteries:
    0
  • Product Name:
    PLASTIC FITTING FOR CONDUIT
  • Product Type:
    Connectors-Straight
  • Size:
    NW17 ; 1 inch Thread
  • Temperature Range:
    -40 to 105 °C
    Short Term 160 °C
  • UPC:
    786209950093

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC001176 - Screw connection for corrugated plastic hose
  • ETIM 7:
    EC001176 - Screw connection for corrugated plastic hose
  • UNSPSC:
    39121311
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    4441 >> Electrical fittings

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
