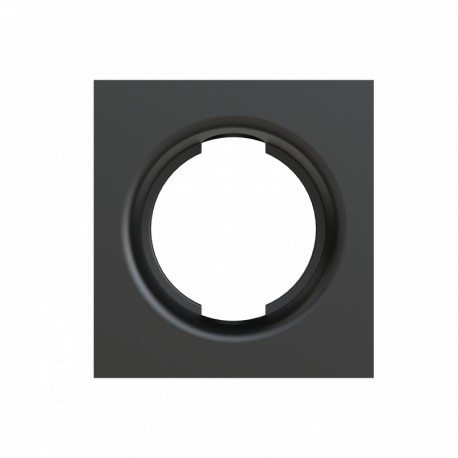

THOMAS AND BETTS BGP-36 BGP-36 7TCA292000R6635 THOMAS AND BETTS SYSTEM SUPPORT PA6 NW36 BLK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BGP-36 7TCA292000R6635 THOMAS AND BETTS SYSTEM SUPPORT PA6 NW36 BLK

BGP-36

7TCA292000R6635

THOMAS AND BETTS

10 Pcs.

SYSTEM SUPPORT PA6 NW36 BLK PMAGRIP STACKABLE STAND, DN36, NG

Cables > Tube clamp
PMA cable protection

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Thomas And Betts BGP-36 system support component is engineered to anchor and stabilize high-grade conduit networks in complex industrial machinery and automated facilities. These supports provide dependable load-bearing retention for critical electrical routing arrays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 7630031201874
  • Customs Tariff Number: 3926909990
  • Product Net Weight: .07 lb 31.746 g
  • Package Level 1 Units: 10 piece
  • Package Level 1 Width: 3.9 in 99 mm
  • Package Level 1 Height: 2.6 in 66 mm
  • Package Level 1 Depth / Length: 5.3 in 135 mm
  • Package Level 2 Units: 70 piece
  • Package Level 2 Width: 11.811 in 300 mm
  • Package Level 2 Height: 8.661 in 220 mm
  • Package Level 2 Depth / Length: 15.748 in 400 mm
  • Brand / Label: PMA
  • Cable Size: NW36
  • Color: Black
  • Material: High-Grade Specially Formulated Polyamide/Nylon 6
  • Number of Batteries: 0

More info

▲

Ordering

EAN:7630031201874
Customs Tariff Number:3926909990

Dimensions

Product Net Weight:.07 lb
31.746 g

Container Information

Package Level 1 Units:10 piece
Package Level 1 Width:3.9 in
99 mm
Package Level 1 Height:2.6 in
66 mm
Package Level 1 Depth / Length:5.3 in
135 mm
Package Level 2 Units:70 piece
Package Level 2 Width:11.811 in
300 mm
Package Level 2 Height:8.661 in
220 mm
Package Level 2 Depth / Length:15.748 in
400 mm

Additional Information

Application:Railway Vehicle Construction, Heavy Machine Building, Other Applications with Increased Mechinical Requirements
Brand / Label:PMA
Cable Size:NW36
Color:Black
Material:High-Grade Specially Formulated Polyamide/Nylon 6
Number of Batteries:0
Product Name:CONDUIT SUPPORT, PLASTIC
Product Type:Flexible Conduit Support Systems
Special Functions:Very High Impact Resistance
Thickness:36 mm
UPC:786210057804

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:BGP-36
Instructions and Manuals:BGP-36

Classifications

ETIM 6:EC001171 - Holder for protective hose
ETIM 7:EC000368 - Tube clamp
UNSPSC:39121701
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):5026 >> Electrical hangers
