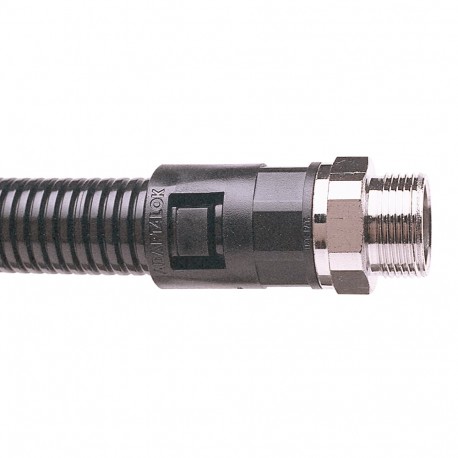

THOMAS AND BETTS AL54/PG48/SA/BL AL54/PG48/SA/BL 7TCA296000R1296 THOMAS AND BETTS PG48 EXT SWIVEL FITTING View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AL54/PG48/SA/BL 7TCA296000R1296 THOMAS AND BETTS PG48 EXT SWIVEL FITTING

AL54/PG48/SA/BL

7TCA296000R1296

THOMAS AND BETTS

2 Pcs.

PG48 EXT SWIVEL FITTING RAC. REC. MET THREAD. GIR. PG48,DN54,BLACK STR SWL PA66/NPB FTG PG48 54MM-BL

Automation > Screw connection for corrugated plastic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for insertion into threaded entries or knockouts, the Thomas And Betts AL54/PG48/SA/BL swivel fitting connects flexible electrical conduits securely to machine housings. Swivel fittings allow for easier alignment of conduit runs during complex electrical installation and maintenance tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5020963027055
  • Customs Tariff Number: 3917400090
  • Product Net Weight: .51 lb 231.293 g
  • Package Level 2 Units: 2 piece
  • Package Level 2 Width: 1 in 25 mm
  • Package Level 2 Height: 1 in 25 mm
  • Package Level 2 Depth / Length: 1 in 25 mm
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: PG48 Thread
  • Color: Black
  • Material: Polyamide/Nylon 6.6
  • Number of Batteries: 0
  • Product Name: ADAPTAFLEX
  • Product Type: Conduit Fitting with PG Threads
  • Size: NC 54mm

More info

▲

Ordering

EAN:5020963027055
Customs Tariff Number:3917400090

Dimensions

Product Net Weight:.51 lb
231.293 g

Container Information

Package Level 2 Units:2 piece
Package Level 2 Width:1 in
25 mm
Package Level 2 Height:1 in
25 mm
Package Level 2 Depth / Length:1 in
25 mm

Additional Information

Application:For Insertion into Threaded Entries or Knockout to Connect Conduit
Brand / Label:Adaptaflex
Cable Entry Position:PG48 Thread
Color:Black
Material:Polyamide/Nylon 6.6
Number of Batteries:0
Product Name:ADAPTAFLEX
Product Type:Conduit Fitting with PG Threads
Size:NC 54mm
UPC:786210256900

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:AL54/PG48/SA/BL
Declaration of Conformity - CE:9AKK107492A9618
Instructions and Manuals:AL54/PG48/SA/BL

Classifications

ETIM 6:EC001176 - Screw connection for corrugated plastic hose
ETIM 7:EC001176 - Screw connection for corrugated plastic hose
UNSPSC:39121311
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):4441 >> Electrical fittings
