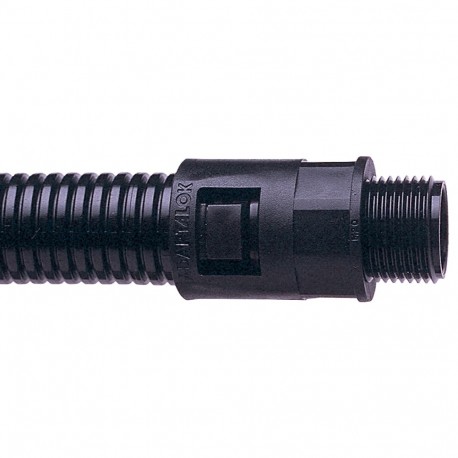

THOMAS AND BETTS AL34/PG29/A/BL AL34/PG29/A/BL 7TCA296000R1002 THOMAS AND BETTS PG29 ADAPTALOK BLACK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AL34/PG29/A/BL 7TCA296000R1002 THOMAS AND BETTS PG29 ADAPTALOK BLACK

AL34/PG29/A/BL

7TCA296000R1002

THOMAS AND BETTS

10 Pcs.

PG29 ADAPTALOK BLACK FIXED STRAIGHT FITTING AL, PG29, DN34, BLACK STR PA66 FITTING PG29 34MM-BL

Automation > Screw connection for corrugated plastic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Thomas And Betts AL34/PG29/A/BL conduit adapter facilitates secure connections between flexible protective tubing and threaded entries or knockouts. Panel builders and system integrators utilize these components to transition conduit runs seamlessly into control cabinets and distribution boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5020963006531
  • Customs Tariff Number: 3917400090
  • Product Net Weight: .15 lb 68.027 g
  • Package Level 1 Units: 10 piece
  • Package Level 1 Width: 2 in 51 mm
  • Package Level 1 Height: 1.3 in 33 mm
  • Package Level 1 Depth / Length: 1.4 in 36 mm
  • Package Level 2 Units: 100 piece
  • Package Level 2 Width: 2 in 51 mm
  • Package Level 2 Height: 1.3 in 33 mm
  • Package Level 2 Depth / Length: 1.4 in 36 mm
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: PG29 Thread
  • Color: Black
  • Material: Polyamide/Nylon 6.6

More info

▲

Ordering

EAN:5020963006531
Customs Tariff Number:3917400090

Dimensions

Product Net Weight:.15 lb
68.027 g

Container Information

Package Level 1 Units:10 piece
Package Level 1 Width:2 in
51 mm
Package Level 1 Height:1.3 in
33 mm
Package Level 1 Depth / Length:1.4 in
36 mm
Package Level 2 Units:100 piece
Package Level 2 Width:2 in
51 mm
Package Level 2 Height:1.3 in
33 mm
Package Level 2 Depth / Length:1.4 in
36 mm

Additional Information

Application:For Insertion into Threaded Entries or Knockout to Connect Conduit
Brand / Label:Adaptaflex
Cable Entry Position:PG29 Thread
Color:Black
Material:Polyamide/Nylon 6.6
Number of Batteries:0
Product Name:plastic fitting for conduit
Product Type:Conduit Fitting with PG Threads
Size:NC 34mm
UPC:786210280707

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:AL34/PG29/A/BL
Declaration of Conformity - CE:9AKK107492A9618
Instructions and Manuals:AL34/PG29/A/BL

Classifications

ETIM 6:EC001176 - Screw connection for corrugated plastic hose
ETIM 7:EC001176 - Screw connection for corrugated plastic hose
UNSPSC:39121311
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):4441 >> Electrical fittings

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
