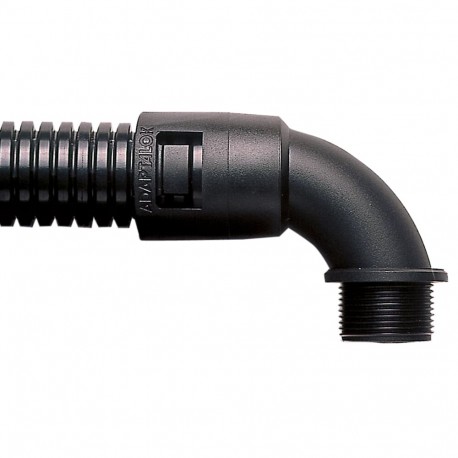

THOMAS AND BETTS AL16/PG11/C90/GR AL16/PG11/C90/GR 7TCA296000R0420 THOMAS AND BETTS PG11 C90 GREY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AL16/PG11/C90/GR 7TCA296000R0420 THOMAS AND BETTS PG11 C90 GREY

AL16/PG11/C90/GR

7TCA296000R0420

THOMAS AND BETTS

10 Pcs.

PG11 C90 GREY 90º FIXED FITTING AL, PG11, DN16, GREY 90D PA66 FITTING PG11 16MM-GR

Automation > Screw connection for corrugated plastic hose
Adaptaflex cable protection and cable gland

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A C90 conduit fitting with PG threads manages right-angle transitions for protective wire management paths in commercial control panels. This Thomas And Betts AL16/PG11/C90/GR part links flexible conduits securely to threaded cabinet ports while protecting internal conductors from strain.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5020963013539
  • Customs Tariff Number: 3917400090
  • Product Net Weight: .02 lb 9.07 g
  • Package Level 1 Units: 10 piece
  • Package Level 2 Units: 100 piece
  • Package Level 2 Width: 1 in 25 mm
  • Package Level 2 Height: 1 in 25 mm
  • Package Level 2 Depth / Length: 1 in 25 mm
  • Application: For Insertion into Threaded Entries or Knockout to Connect Conduit
  • Brand / Label: Adaptaflex
  • Cable Entry Position: PG11 Thread
  • Color: Gray
  • Material: Polyamide/Nylon 6.6
  • Number of Batteries: 0
  • Product Name: ADAPTAFLEX
  • Product Type: Conduit Fitting with PG Threads

More info

▲

Ordering

EAN:5020963013539
Customs Tariff Number:3917400090

Dimensions

Product Net Weight:.02 lb
9.07 g

Container Information

Package Level 1 Units:10 piece
Package Level 2 Units:100 piece
Package Level 2 Width:1 in
25 mm
Package Level 2 Height:1 in
25 mm
Package Level 2 Depth / Length:1 in
25 mm

Additional Information

Application:For Insertion into Threaded Entries or Knockout to Connect Conduit
Brand / Label:Adaptaflex
Cable Entry Position:PG11 Thread
Color:Gray
Material:Polyamide/Nylon 6.6
Number of Batteries:0
Product Name:ADAPTAFLEX
Product Type:Conduit Fitting with PG Threads
Size:NC 16mm
UPC:786210252568

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:AL16/PG11/C90/GR
Declaration of Conformity - CE:9AKK107492A9618
Instructions and Manuals:AL16/PG11/C90/GR

Classifications

ETIM 6:EC001176 - Screw connection for corrugated plastic hose
ETIM 7:EC001176 - Screw connection for corrugated plastic hose
UNSPSC:39121311
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):4441 >> Electrical fittings
