> THOMAS AND BETTS > Terminals > 7TAI029070R0059

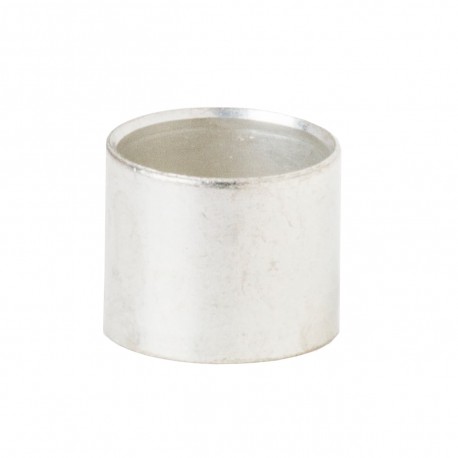

THOMAS AND BETTS GSC425 7TAI029070R0059 THOMAS AND BETTS NEX TERMINAL. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7TAI029070R0059 THOMAS AND BETTS NEX TERMINAL.

GSC425

7TAI029070R0059

THOMAS AND BETTS

1000 Pcs.

NEX TERMINAL. 2-PC OUTER SLVE CONN SLV I.D. 0.425

Automation > Connection for screened wires
Terminals

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    GSC425
  • Product ID:
    7TAI029070R0059
  • EAN:
    5414363114604
  • Catalog Description:
    2-PC OUTER SLVE CONN SLV I.D. 0.425
  • Long Description:
    Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .425 Inches/10.80mm, Outer Diameter .475 Inches/12.06mm, Color Silver, Soft Bronze, Tin Plated

Ordering

  • EAN:
    5414363114604
  • UPC:
    786210814049
  • Country of Origin:
    United States (US)
  • Selling Unit of Measure:
    each

Container Information

  • Package Level 1 Units:
    1000 piece
  • Package Level 1 Width:
    4.5 in
    114 mm
  • Package Level 1 Height:
    3 in
    76 mm
  • Package Level 1 Depth / Length:
    6 in
    152 mm
  • Package Level 2 Units:
    10000 piece
  • Package Level 2 Width:
    12.7 in
    323 mm
  • Package Level 2 Height:
    3.5 in
    89 mm
  • Package Level 2 Depth / Length:
    24.2 in
    615 mm

Additional Information

  • Brand / Label:
    Sta-Kon
  • Color:
    Gray
  • Effective Date:
    19680516
  • Material:
    Soft Bronze
  • Product Name:
    STA-KON AND CATAMOUNT TERMINAL
  • Product Type:
    Two-Piece Outer Sleeve Connector
  • Special Functions:
    Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications.
  • Sub Brand / Label:
    Shield-Kon

Certificates and Declarations

  • Data Sheet, Technical Information:
    GSC425

Classifications

  • ETIM 6:
    EC002650 - Connection for screened wires
  • ETIM 7:
    EC002650 - Connection for screened wires
  • ETIM 8:
    EC002650 - Connection for screened wires
  • UNSPSC:
    39121432
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    4603 >> Electrical terminals

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
