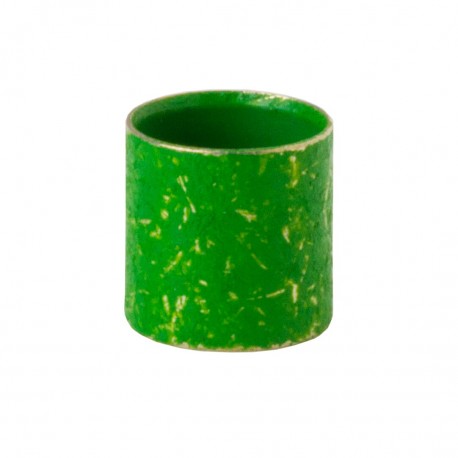

7TAI029060R0017 THOMAS AND BETTS GROUND CONNECTOR SHIELDED CABLES C/GREEN
GSC297
7TAI029060R0017
THOMAS AND BETTS
1000 Pcs.
Automation > Connection for screened wires
Terminals
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as a Thomas And Betts GSC297 two-piece outer sleeve connector, this hardware securely grounds and insulates shielded cable assemblies. Industrial installers depend on these components to maintain low-resistance ground paths in data and power distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Extended Product Type: GSC297
- Product ID: 7TAI029060R0017
- Catalog Description: 2-PC OUTER SLV CONN GRN I.D. 0.297
- UPC: 786210813967
- Selling Unit of Measure: each
- Brand / Label: Sta-Kon
- Color: Green
- Effective Date: 19680516
- Material: Soft Bronze
- Product Name: STA-KON AND CATAMOUNT TERMINAL
- Product Type: Two-Piece Outer Sleeve Connector
- Sub Brand / Label: Shield-Kon
- Data Sheet, Technical Information: GSC297
- WEEE Category: Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals
- EAN: 5414363114529
More info
▲- Extended Product Type:
- GSC297
- Product ID:
- 7TAI029060R0017
- EAN:
- 5414363114529
- Catalog Description:
- 2-PC OUTER SLV CONN GRN I.D. 0.297
- Long Description:
- Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .297 Inches/7.54mm, Outer Diameter .335 Inches/8.50mm, Color Green, Soft Bronze, Tin Plated
Ordering
- EAN:
- 5414363114529
- UPC:
- 786210813967
- Country of Origin:
- United States (US)
- Selling Unit of Measure:
- each
Container Information
- Package Level 1 Units:
- 1000 piece
- Package Level 1 Width:
- 4 in
102 mm
- Package Level 1 Height:
- 3 in
76 mm
- Package Level 1 Depth / Length:
- 4 in
102 mm
- Package Level 2 Units:
- 10000 piece
- Package Level 2 Width:
- 4.6 in
117 mm
- Package Level 2 Height:
- 3.1 in
79 mm
- Package Level 2 Depth / Length:
- 5 in
127 mm
Additional Information
- Brand / Label:
- Sta-Kon
- Color:
- Green
- Effective Date:
- 19680516
- Material:
- Soft Bronze
- Product Name:
- STA-KON AND CATAMOUNT TERMINAL
- Product Type:
- Two-Piece Outer Sleeve Connector
- Special Functions:
- Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications.
- Sub Brand / Label:
- Shield-Kon
Certificates and Declarations
- Data Sheet, Technical Information:
- GSC297
Classifications
- ETIM 6:
- EC002650 - Connection for screened wires
- ETIM 7:
- EC002650 - Connection for screened wires
- ETIM 8:
- EC002650 - Connection for screened wires
- UNSPSC:
- 39121432
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4603 >> Electrical terminals
