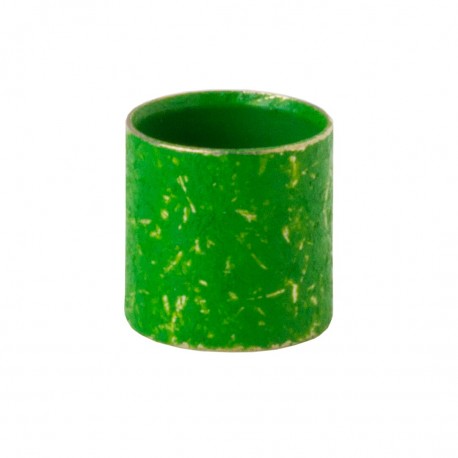

THOMAS AND BETTS GSC219 7TAI029060R0014 THOMAS AND BETTS BLIN-mil-SPEC cable connector MS21980-219 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7TAI029060R0014 THOMAS AND BETTS BLIN-mil-SPEC cable connector MS21980-219

GSC219

7TAI029060R0014

THOMAS AND BETTS

1000 Pcs.

BLIN-mil-SPEC cable connector MS21980-219 2-PC OUTER SLV CONN GRN I.D. 0.219

Automation > Connection for screened wires
Terminals

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a Thomas And Betts GSC219 two-piece outer sleeve connector, this hardware provides robust grounding, termination, and insulation for shielded and coaxial cables. Technicians rely on these components to secure braid shields against interference in demanding military and industrial setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: GSC219
  • Product ID: 7TAI029060R0014
  • Catalog Description: 2-PC OUTER SLV CONN GRN I.D. 0.219
  • UPC: 786210813875
  • Selling Unit of Measure: each
  • Brand / Label: Sta-Kon
  • Color: Green
  • Effective Date: 19680516
  • Material: Soft Bronze
  • Product Name: ELECTRICAL COUPLING
  • Product Type: Two-Piece Outer Sleeve Connector
  • Sub Brand / Label: Shield-Kon
  • Data Sheet, Technical Information: GSC219
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals
  • EAN: 5414363114451

More info

▲
  • Extended Product Type:
    GSC219
  • Product ID:
    7TAI029060R0014
  • EAN:
    5414363114451
  • Catalog Description:
    2-PC OUTER SLV CONN GRN I.D. 0.219
  • Long Description:
    Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .219 Inches/5.56mm, Outer Diameter .250 Inches/6.35mm, Color Green, Soft Bronze, Tin Plated

Ordering

  • EAN:
    5414363114451
  • UPC:
    786210813875
  • Country of Origin:
    United States (US)
  • Selling Unit of Measure:
    each

Container Information

  • Package Level 1 Units:
    1000 piece
  • Package Level 1 Width:
    3 in
    76 mm
  • Package Level 1 Height:
    3 in
    76 mm
  • Package Level 1 Depth / Length:
    3.5 in
    89 mm
  • Package Level 2 Units:
    10000 piece
  • Package Level 2 Width:
    6.9 in
    175 mm
  • Package Level 2 Height:
    4.5 in
    114 mm
  • Package Level 2 Depth / Length:
    16.2 in
    411 mm

Additional Information

  • Brand / Label:
    Sta-Kon
  • Color:
    Green
  • Effective Date:
    19680516
  • Material:
    Soft Bronze
  • Product Name:
    ELECTRICAL COUPLING
  • Product Type:
    Two-Piece Outer Sleeve Connector
  • Special Functions:
    Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications.
  • Sub Brand / Label:
    Shield-Kon

Certificates and Declarations

  • Data Sheet, Technical Information:
    GSC219

Classifications

  • ETIM 6:
    EC002650 - Connection for screened wires
  • ETIM 7:
    EC002650 - Connection for screened wires
  • ETIM 8:
    EC002650 - Connection for screened wires
  • UNSPSC:
    39121432
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    4603 >> Electrical terminals
