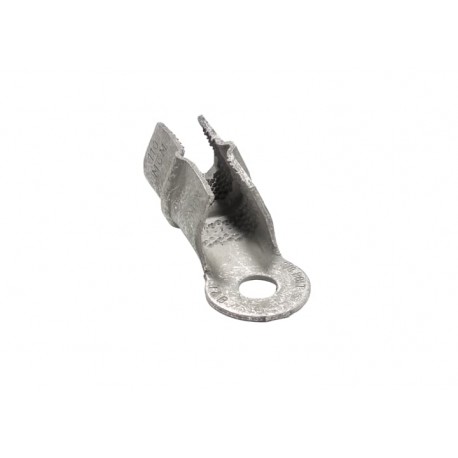

THOMAS AND BETTS 220017 220017 7TAI029010R0011 THOMAS AND BETTS ANIL. CONN. INSULATION PRC 3/8 STUD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

220017 7TAI029010R0011 THOMAS AND BETTS ANIL. CONN. INSULATION PRC 3/8 STUD

220017

7TAI029010R0011

THOMAS AND BETTS

25 Pcs.

ANIL. CONN. INSULATION PRC 3/8 STUD ANIL. CONN. PRC 3/8 STUD INSULATION RING TERM CU .100-.175AWG 3/8 STUD

Automation > Solderless copper terminals for copper conductors
Terminals

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Thomas And Betts part number 220017 is an insulated ring terminal utilized for securing reliable connections between conductors in electrical control panels and power distribution assemblies. Electrical terminals of this type provide dependable mechanical holding power and consistent electrical contact under standard operational stresses. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: 220017
  • Product ID: 7TAI029010R0011
  • Catalog Description: RING TERM CU .100-.175AWG 3/8 STUD
  • Application: For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
  • Brand / Label: Dragon Tooth
  • Material: Copper
  • Number of Batteries: 0
  • Product Name: ELECTRICAL TERMINAL
  • Product Type: Ring Terminal
  • Standards: UL E9809
  • UPC: 786210855530
  • Data Sheet, Technical Information: 220017
  • Instructions and Manuals: 220017
  • WEEE Category: Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC): 4603 >> Electrical terminals
  • Product Net Weight: .111 lb 50.34 g

More info

▲
  • Extended Product Type:
    220017
  • Product ID:
    7TAI029010R0011
  • EAN:
    5414363111856
  • Catalog Description:
    RING TERM CU .100-.175AWG 3/8 STUD
  • Long Description:
    Insulation Piercing Magnet Wire Ring Terminal, Length 2.76 Inches, Width 1.06 Inches, Length of Teeth 1.50 Inches, Width of Teeth .88 Inches, Stud Size 3/8 Inch, Wire Range .100 AWG - .175 AWG 50,000 Circular Mil Area - 115,000 Circular Mil Area, Copper Alloy, Tin Plated

Ordering

  • EAN:
    5414363111856
  • Customs Tariff Number:
    8536904000

Dimensions

  • Product Net Weight:
    .111lb
    50.34 g

Container Information

  • Package Level 1 Units:
    25 piece
  • Package Level 1 Width:
    4.5 in
    114 mm
  • Package Level 1 Height:
    3 in
    76 mm
  • Package Level 1 Depth / Length:
    6 in
    152 mm
  • Package Level 2 Units:
    250 piece
  • Package Level 2 Width:
    10.7 in
    272 mm
  • Package Level 2 Height:
    10.7 in
    272 mm
  • Package Level 2 Depth / Length:
    13 in
    330 mm

Additional Information

  • Application:
    For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
  • Brand / Label:
    Dragon Tooth
  • Material:
    Copper
  • Number of Batteries:
    0
  • Product Name:
    ELECTRICAL TERMINAL
  • Product Type:
    Ring Terminal
  • Special Functions:
    Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
  • Standards:
    UL E9809
  • UPC:
    786210855530

Certificates and Declarations (Document Number)

  • Data Sheet, Technical Information:
    220017
  • Instructions and Manuals:
    220017

Classifications

  • ETIM 6:
    EC001052 - Solderless copper terminals for copper conductors
  • ETIM 7:
    EC001052 - Solderless copper terminals for copper conductors
  • UNSPSC:
    39121432
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    4603 >> Electrical terminals

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
