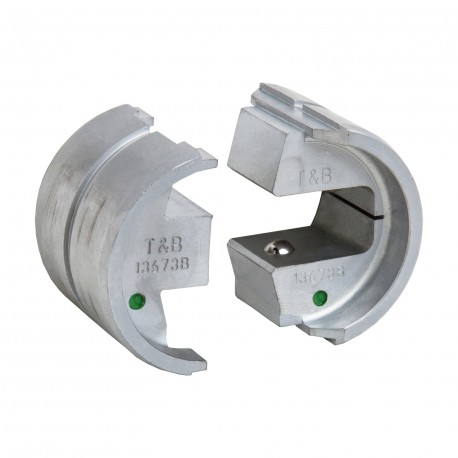

THOMAS AND BETTS 13673B 13673B 7TAA131850R0035 THOMAS AND BETTS 14TON DIE CRMP DT TERM MULTI View larger
Images are for illustrative purposes only. Please refer to data sheet for details

13673B 7TAA131850R0035 THOMAS AND BETTS 14TON DIE CRMP DT TERM MULTI

13673B

7TAA131850R0035

THOMAS AND BETTS

1 Pcs.

14TON DIE CRMP DT TERM MULTI DRAGON T. JAW FOR 13100A MAX 11.9MM

Cables > Insert for crimp tool cable lugs, cable end sleeves, screen connection
Terminals

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized in heavy-duty wiring setups, the Thomas And Betts 13673B functions as a die for crimping tool engineered to attach specialized connectors to conductors securely. Crimping dies provide the necessary profile geometry to deform terminal barrels uniformly around wires, preventing pull-out and maintaining low electrical resistance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • EAN: 5414363111351
  • Customs Tariff Number: 8207306062
  • Product Net Weight: 1.25 lb 566.893 g
  • Package Level 2 Units: 1 piece
  • Package Level 2 Width: 5 in 127 mm
  • Package Level 2 Height: 1.25 in 32 mm
  • Package Level 2 Depth / Length: 5 in 127 mm
  • Application: Crimping Dragon Tooth terminal for magnet wire.
  • Brand / Label: Dragon Tooth
  • Color: Silver
  • Material: Alloy Steel
  • Number of Batteries: 0
  • Product Name: DIE FOR CRIMPING TOOL
  • Product Type: Die
  • UPC: 786210816555
  • Data Sheet, Technical Information: 13673B

More info

▲

Ordering

EAN:5414363111351
Customs Tariff Number:8207306062

Dimensions

Product Net Weight:1.25 lb
566.893 g

Container Information

Package Level 2 Units:1 piece
Package Level 2 Width:5 in
127 mm
Package Level 2 Height:1.25 in
32 mm
Package Level 2 Depth / Length:5 in
127 mm

Additional Information

Application:Crimping Dragon Tooth terminal for magnet wire.
Brand / Label:Dragon Tooth
Color:Silver
Material:Alloy Steel
Number of Batteries:0
Product Name:DIE FOR CRIMPING TOOL
Product Type:Die
UPC:786210816555

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:13673B
Instructions and Manuals:13673B

Classifications

ETIM 6:EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection
ETIM 7:EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection
UNSPSC:27112820
WEEE Category:Product Not in WEEE Scope
IDEA Granular Category Code (IGCC):2427 >> Lug crimping tool dies
