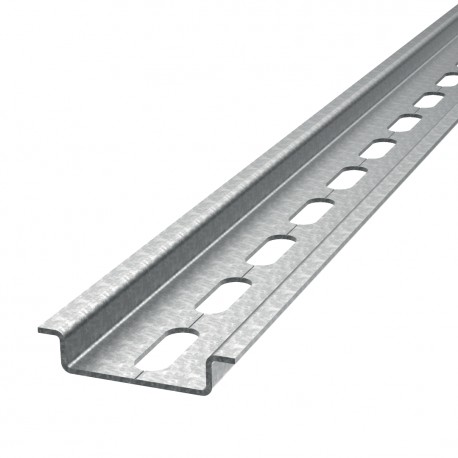

TEKNOMEGA DIN NF35H7 DIN NF35H7 DIN1000 TEKNOMEGA SYMMETRICAL DIN PROFILE H7,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DIN NF35H7 DIN1000 TEKNOMEGA SYMMETRICAL DIN PROFILE H7,5

DIN NF35H7

DIN1000

TEKNOMEGA

1 Pcs.

SYMMETRICAL DIN PROFILE H7,5 PERFIL DIN SIMÉTRICO H7,5 Ω-Symmetrical DIN rails, SIZE 35mm x 7.5mm

Automation > Mounting rail

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A DIN NF35H7 symmetrical DIN profile H7,5 by Teknomega acts as the primary mechanical backbone for mounting modular electrical devices inside control panels. Standardized omega rails support quick installation and secure retention of terminal blocks, power supplies, and automation modules. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Teknomega
  • Manufacturer part number: DIN NF35H7
  • Catalogue code: DIN1000
  • Catalogue title: DIN NF35H7 DIN1000 TEKNOMEGA SYMMETRICAL DIN PROFILE H7,5
  • Manufacturer summary: SYMMETRICAL DIN PROFILE H7,5 PERFIL DIN SIMÉTRICO H7,5 Ω-Symmetrical DIN rails, SIZE 35mm x 7.5mm

More info

▲

Technical Characteristics

Material:

A = passivated galvanised DC01 steel, minimum thickness 6μm

B = galvanised steel DX51D sendzimir Z200

EN 60715 - DIN 46277 Compliant with standards

Available in solid and punched versions
