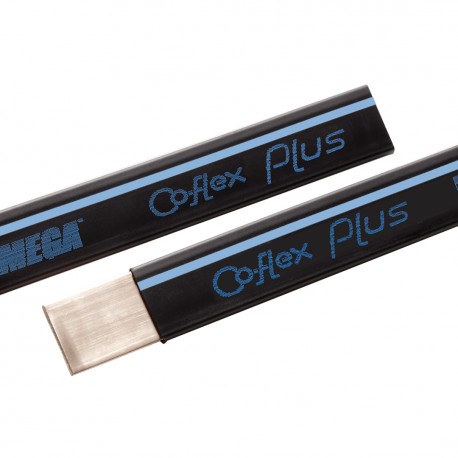

TEKNOMEGA CFP 2X40X1 CFP 2X40X1 CFX5155 TEKNOMEGA INSULATED COPPER FLEXIBLE BARS CO-FLEX PLUS 2X40X1 LENGTH 2MT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CFP 2X40X1 CFX5155 TEKNOMEGA INSULATED COPPER FLEXIBLE BARS CO-FLEX PLUS 2X40X1 LENGTH 2MT

CFP 2X40X1

CFX5155

TEKNOMEGA

4 Pcs.

INSULATED COPPER FLEXIBLE BARS CO-FLEX PLUS 2X40X1 LENGTH 2MT PLETINA AISLADA FLEXIBLE CO-FLEX PLUS 2X40X1 COFLEX PLUS – Insulated copper flexible bars

Automation > Busbar

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Insulated copper flexible bars act as high-capacity conductive links within electrical enclosures, connecting transformers and distribution blocks while reducing stress on terminal connections. The Teknomega CFP 2X40X1 component is engineered for heavy-duty power distribution applications. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Teknomega
  • Manufacturer part number: CFP 2X40X1
  • Catalogue code: CFX5155
  • Catalogue title: CFP 2X40X1 CFX5155 TEKNOMEGA INSULATED COPPER FLEXIBLE BARS CO-FLEX PLUS 2X40X1 LENGTH 2MT

More info

▲

Technical Characteristics

Conductor
Tinned electrolytic copper:
Cu-ETP – EN 13599
Laminate thickness:
0,5 – 0,8 – 1mm

Insulation
TPE compound
Black color with a light blue line
Low smoke emission
Self-extinguishing: UL 94-V0
Halogen free
Thickness: 1,9 mm
Dielectric strenght: 20 kV/mm
Class II according to Par. 8.4.4 IEC 61439-1
Recyclable

Finishinged product
Rated voltage:
1000V AC / 1500V DC
Working temperatures:−40 °C ÷ +140 °C
