TEGUI 374521 374521 TEGUI TG/2H-M-FREE C100V16E View larger
Images are for illustrative purposes only. Please refer to data sheet for details

374521 TEGUI TG/2H-M-FREE C100V16E

374521

374521

TEGUI

1 Pcs.

TG/2H-M-FREE C100V16E Monitor hands-free CLASSE 100 advanced 2-wire Classe 100 Advanced 2-Wire Hands-Free Monitor

Automation > Indoor station door communication
VIDEO DOOR PHONES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

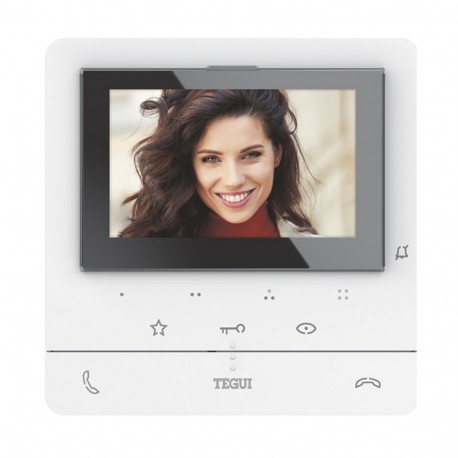

Configured as a Tegui TG/2H-M-FREE C100V16E device, part number 374521, this unit operates as a hands-free color video monitor for building intercom networks. Indoor video monitors display camera feeds from entrance stations and allow residents to communicate with visitors and release door strikes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 165 mm
  • Hearing aid compatible (EF004782): Yes
  • Property picture system (EF007736): Colour
  • Material (EF002169): Plastic
  • Installation technique (EF001474): Bus system
  • Mounting method (EF000003): Surface mounted
  • Mutable call tone (EF001476): Yes
  • Compatible with Apple HomeKit (EF014925): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • With video (EF001490): Yes
  • Can be connected to smartphone (EF012450): No
  • Picture system (EF003628): PAL
  • Loudness control (EF001484): Yes
  • Screen diagonal (EF002032): 127 mm
  • Screen diagonal (inch) (EF006332): 5 inch

More info

▲

Product features

Monitor for 2-WIRE hands-free teleloop and a colour LCD screen of 5”. It has 2 physical buttons to control the main functions – answer and completion of communication – it is equipped with 3 touch buttons to control the main functions – opening of the lock, activation of the lights of the stairs and the activation of the outer plate/display cyclic of cameras – more 4 touch buttons configurable – e.g. intercom, activation of the lock additional. The device has a joystick side to regulate: the color, the brightness and the contrast of the screen, the audio volume and the ringtone volume. It has a led to indicate the status of the call. The installation can be done in surface with the metal bracket corresponding to (supplied) or pc thanks to the media desktop (2 x 344692) – sold separately. The device, which also has function study professional, you must be configured.

General characteristics

MONITOR HANDS-FREE CLASSE 100V16E

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
