View larger
Images are for illustrative purposes only. Please refer to data sheet for details
374511 TEGUI TG/2H-M-FREE C100V16B
374511
374511
TEGUI
1 Pcs.
TG/2H-M-FREE C100V16B

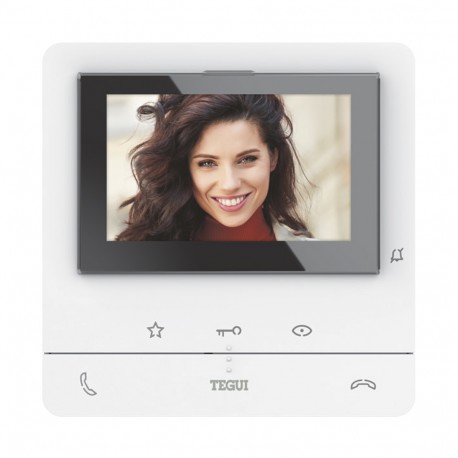

Monitor hands-free CLASSE 100 basic 2-wire
Classe 100 basic 2-wire hands-free monitor
Automation > Indoor station door communication
VIDEO DOOR PHONES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Monitor for 2-WIRE hands free with colour display 5”. The device has 2 physical buttons to control the main functions – answer and completion of communication – and 3-touch buttons that allow the opening of the lock, the activation of the outer plate/display cyclic cameras and the personalization of a quick-action or preferred by the user – e.g. control of the lights in the stairwell, intercom, activation of the lock additional.The device has a joystick side to regulate: the color, the brightness and the contrast of the screen, the audio volume and the ringtone volume. It has a led to indicate the status of the call. The installation can be done in surface with the metal bracket corresponding to (supplied) or pc thanks to the media desktop (2 x 344692) – sold separately. The device must be configured.General characteristics
MONITOR HANDS-FREE CLASSE 100V16B| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 165 mm |
| Hearing aid compatible (EF004782) | No |
| Property picture system (EF007736) | Colour |
| Material (EF002169) | Plastic |
| Installation technique (EF001474) | Bus system |
| Mounting method (EF000003) | Surface mounted |
| Mutable call tone (EF001476) | Yes |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| With video (EF001490) | Yes |
| Can be connected to smartphone (EF012450) | No |
| Picture system (EF003628) | PAL |
| Loudness control (EF001484) | Yes |
| Screen diagonal (EF002032) | 127 mm |
| Screen diagonal (inch) (EF006332) | 5 inch |
| Type of interface (EF006977) | Other |
| Additional device connectable (EF001483) | No |
| Hands free (EF000971) | Yes |
| With memory function (EF000234) | No |
| With touch screen (EF003102) | No |
| Specific call tone (EF008036) | Yes |
| IFTTT support available (EF011072) | No |
| Depth (EF000049) | 20.5 mm |
| Overhear protected (EF001215) | No |
| Internal communication (EF001479) | Yes |
| Operation door lock (EF001478) | Yes |
| Colour (EF000007) | White |
| Function lamps (EF001956) | No |
| Width (EF000008) | 164 mm |
| Control extra function(s) (EF001955) | Yes |
| With automatic door opener (EF001958) | Yes |
