374001 TEGUI TG/A/S7-HOSE PLATES
374001
374001
TEGUI
1 Pcs.
TG/A/S7-HOSE PLATES

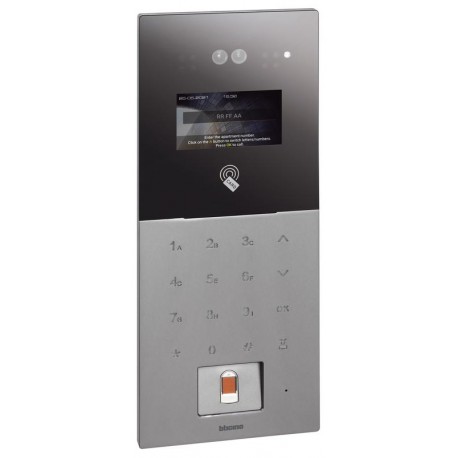

Bticino Video Entrance Panel with 4.3” Display, Keypad, Double Face Recognition Camera, Fingerprint Reader and Key Fob Reader
Conventional plate connection hose SERIES 7
Cables > Power cable less 1 kV, for moving application
PLATES AND DOOR PHONES EQUIPMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Number of call buttons | 0 |
|---|---|
| Material front | Other |
| Front plate height | 400 mm |
| Front plate width | 160 mm |
| Built-in height | 384 mm |
| Built-in width | 149 mm |
| Built-in depth | 60 mm |
| Mounting method | Flush-mounted |
| Installation technique | Network technology |
| Modular construction | No |
| Colour | Silver |
| Degree of protection (IP) | IP54 |
| degree of impact strength (IK) | IK07 |
| Operating / setting temperature | -40-70 °C |
| Storage temperature | -40-70 °C |
| Voltage type | DC |
| Nominal voltage | 24-24 V |
| Supply current | 0.65-0.65 A |
| Halogen free | Yes |
| Cable nature for connection | Flexible or rigid |
| Cable section | 0.8-0.8 mm² |
| Label space/information surface | No |
|---|---|
| Fitted with rainproof plate protection | No |
| With complemantary luminous signal | No |
| Contains Batteries and/or Accumulator | No |
| Hands free | Yes |
| Loudness setting | Yes |
| Addressable | Yes |
| Door entry system with mobile application | No |
| Remote opening of gate / Electric door opener | Yes |
| Camera type | Night vision |
| Video recorder angle | 80 ° |
| Communication rank type | Other |
| Connected object | Yes |
| Operating method | Network |
| Application store for download | App Store , Google Play Store |
| With voice command | No |
| Programmable | Yes |
| Programming way | Web software |
| Connectable by Internet box | No |
| Application name | Home + Security |
| Product use function | Door entry systems |
| Feature Name | Feature Value |
|---|---|
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles (EF011579) | None |
| Cable height approx. (EF003797) | 6 mm |
| Reaction-to-fire according to EN 13501-6: Smoke production (EF011578) | None |
| Reaction-to-fire according to EN 13501-6: Class (EF011577) | None |
| Cable width approx. (EF003796) | 5 mm |
| Low temperature resistant according to EN 60811-504+505+506 (EF009771) | No |
| Conductor surface (EF010804) | Bare |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Torsion resistant (EF001687) | No |
| Reaction-to-fire according to EN 13501-6: Acidity (EF011580) | None |
| Shape of conductor (EF001620) | Round |
| Colour outer sheath (EF001618) | Grey |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Nominal voltage U (EF001615) | 12 V |
| Stranding element (EF001617) | No |
| Nominal voltage U0 (EF001790) | 12 V |
| Number of cores (EF001792) | 3 |
| Core identification (EF000067) | Other |
| Suspension element (EF001794) | None |
| Nominal cross section conductor (EF000060) | 0.16 mm² |
| Conductor material (EF001622) | Copper |
| Screen over stranding (EF001624) | None |
| Screen over stranding element (EF001623) | None |
| Outer diameter approx. (EF003921) | 2 mm |
| AWG size (EF011789) | 26 |
| With protective conductor (EF007468) | No |
| Cable geometry (EF013532) | Flat |
| Conductor category (EF001632) | Class 6 = very flexible |
