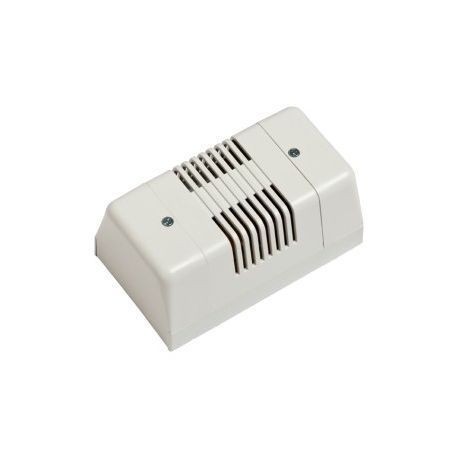

TEGUI 0E5557 0E5557 TEGUI TG-ADAPTER EAL-1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

0E5557 TEGUI TG-ADAPTER EAL-1

0E5557

0E5557

TEGUI

1 Pcs.

TG-ADAPTER EAL-1 Adapter EAL-1 (lights) EAL Adapter - 1 (lights)

Automation > Functional module for door communication
PLATES AND DOOR PHONES EQUIPMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a control adapter module, the Tegui 0E5557 bridges signaling formats and matches electrical parameters within multi-wire communication systems. These interface adapters are typically deployed behind the scenes in complex door entry architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 70 mm
  • Type of voltage (input voltage) (EF003033): AC/DC
  • Housing material (EF001596): Plastic
  • Contains keypad (EF007158): No
  • Installation technique (EF001474): Multi-wire system
  • Reading strategy code (EF016238): No
  • Reading strategy data medium (EF016239): No
  • Reading strategy biometric (EF016237): No
  • Surface mounting (EF003681): Yes
  • Model (EF000010): Control module
  • With housing (EF001102): Yes
  • Operating voltage (EF003983): 12 V
  • With day/night function (EF021124): No
  • Depth (EF000049): 65 mm
  • Flush-mounted installation (EF007517): No
  • Width (EF000008): 90 mm

More info

▲

Product features

Relay actuator type EAL-1 for power staircase light, or other activation by push button auxiliary of the since internal. Relays for auxiliary functions various: repetition of called acoustic or luminous, activation of door openers alone or on stair lights by push button for additional phones and monitors. Maximum capacity of 2A, 250Vac or 5A, 30Vdc.

General characteristics

Relays and actuators
