View larger
Images are for illustrative purposes only. Please refer to data sheet for details

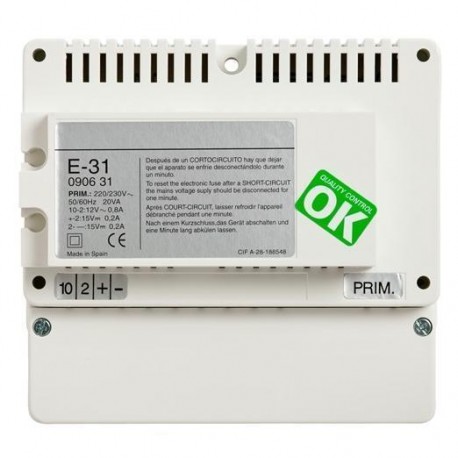

090631 TEGUI FEEDER E-31 (AUDIO)
090631
090631
TEGUI
1 Pcs.
FEEDER E-31 (AUDIO)
E-31 Feeder (AUDIO)
Automation > Power supply door communication
DOOR PHONES SPARE PARTS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
FEEDER E-31 (AUDIO)General characteristics
Spare parts| Feature Name | Feature Value |
|---|---|
| Application (EF000041) | Door station |
| Height (EF000040) | 125 mm |
| Service indication (EF002686) | No |
| Width in number of modular spacings (EF002950) | 7 |
| Installation technique (EF001474) | Multi-wire system |
| Type of current (EF000143) | AC |
| Mounting method (EF000003) | DIN rail |
| Integrated door opening circuit (EF002684) | No |
| Control function (EF002685) | No |
| Programming lock (EF008023) | No |
| Short-circuit-proof (EF007332) | Yes |
| Number of connectable participators (EF002729) | 250 |
| Depth (EF000049) | 62 mm |
| Input voltage (EF000106) | 230 V |
| Max. output current (EF001315) | 1500 mA |
| Frequency (EF000416) | 50 Hz |
| Width (EF000008) | 90 mm |
| Output voltage (EF000107) | 17 V |
