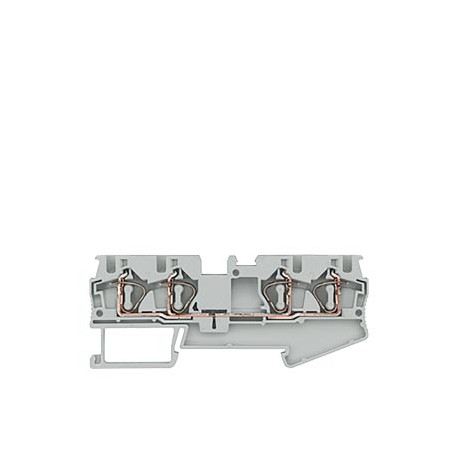

SIEMENS 8WH2004-0AF00 8WH2004-0AF00 SIEMENS Through-type terminals with spring-loaded connection, 4 terminals Cross-section: 0.08-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8WH2004-0AF00 SIEMENS Through-type terminals with spring-loaded connection, 4 terminals Cross-section: 0.08-..

8WH2004-0AF00

20040

SIEMENS

50 Pcs.

Through-type terminals with spring-loaded connection, 4 terminals Cross-section: 0.08-2.5 mm2, Width: 5.2mm, Color: gray Spring connection passage terminal, 4 connection points section: 0.08 - 2.5 mm2, width: 5.2 mm, color: gray ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 50 Units ** ). Cancelations and returns limited. Consult conditions.

Automation > Feed-through terminal block
Terminals

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Through-type terminals with spring-loaded connection, 4 terminals Cross-section: 0.08-2.5 mm2, Width: 5.2mm, Color: gray
Model
product brand nameSENTRON
product designationALPHA FIX terminal blocks
design of terminal / terminal levels internally linkedNo
General technical data
terminal contact spacing5 mm
operating voltage / rated value800 V
Protection class
combustibility class according to UL 94V0
Main circuit
operational current / rated value28 A
Appearance
colorgrey
Product details
product component / required / end cover plateNo
Number
number of terminal levels1
number of terminal points / per terminal level4
Connections
stripped length10 mm
connectable conductor cross-section / solid
● minimum4 mm²
● maximum4 mm²
connectable conductor cross-section / stranded
● minimum4 mm²
● maximum4 mm²
connectable conductor cross-section / finely stranded
● with core end processing / minimum2.5 mm²
● with core end processing / maximum3 mm²
● without core end processing / minimum2.5 mm²
● without core end processing / maximum2.5 mm²
type of connection
● 1spring-loaded terminal
● 2spring-loaded terminal
position / of the terminaltop
Mechanical Design
fastening methodDIN rail 35 mm
net weight10 g
material / of the insulating bodyOther
Environmental conditions
ambient temperature / during operation
● minimum-25 °C
● maximum55 °C

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

CSA

Confirmation

UR

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/11/2022


Additional data

Product
Article Number (Market Facing Number)8WH2004-0AF00
Product DescriptionThrough-type terminals with spring-loaded connection, 4 terminals Cross-section: 0.08-2.5 mm2, Width: 5.2mm, Color: gray
Product family8WH terminals
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12X / 1BT
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works7 Day/Days
Net Weight (kg)0,009 Kg
Packaging Dimension36,00 x 72,00 x 5,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Minimum order quantity50
Additional Product Information
EAN4001869346762
UPC040892559514
Commodity Code85369010
LKZ_FDB/ CatalogIDLV10.2
Product Group5556
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.04.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-11-20
eClass7.127-14-11-20
eClass827-14-11-20
eClass927-14-11-20
eClass9.127-14-11-20
ETIM5EC000897
ETIM6EC000897
ETIM7EC000897
ETIM8EC000897
IDEA44555
UNSPSC1439-12-14-10
UNSPSC1539-12-14-10

ETIM data

ETIM: EC000897 - Feed-through terminal block

Value Unit
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) ['2.5', '2.5']mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) ['2.5', '2.5']mm²
Connectable conductor cross section solid-core (EF007337) ['4.0', '4.0']mm²
Connectable conductor cross section multi-wired (EF007343) ['4.0', '4.0']mm²
Rated current In (EF008250) 28.0A
Rated voltage (EF000228) 800V
Type of electrical connection 1 (EF002526) Spring clamp connection
Type of electrical connection 2 (EF002527) Spring clamp connection
Connection position (EF008219) Above
Number of levels (EF002659) 1
Number of clamp positions per level (EF002660) 4
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) ['-25', '55']°C
Inflammability class of insulation material according to with UL94 (EF002521) V0
Width/grid dimension (EF002522) 5.2mm
Explosion-tested version 'Ex e' (EF008498) false
Closing plate required (EF002525) false
Colour (EF000007) Grey
Internally connected stages (EF002661) false
Length (EF001438) -mm
Height at lowest possible mounting height (EF002523) -mm



Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
