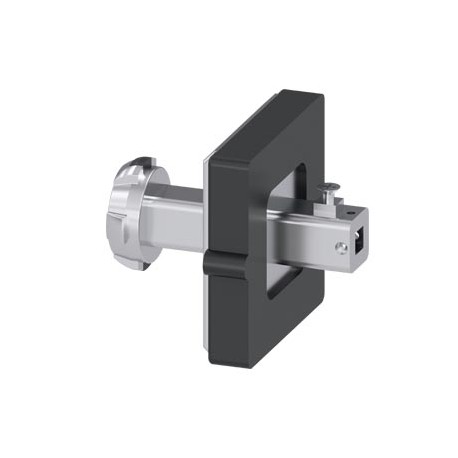

8UD1900-6HA00 SIEMENS Door-coupling Size 8x 8 mm, large head Accessory for: Door-coupling rotary operating m..
8UD1900-6HA00
19006
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens door-coupling size 8x8 mm, large head functions as a mechanical extension component used in low-voltage switchgear to link enclosed circuit breakers or disconnectors to external cabinet doors. This assembly allows operators to safely actuate internal switching devices from the exterior of an enclosure while maintaining proper door interlock safety standards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: door coupling
- design of the product: size 8x 8 mm
- Product details product description: large head
- ● extension shaft: No
- Accessories accessories: Door coupling
- Downloads and manuals General Product Approval: Declaration of Conformity
- Product Article Number (Market Facing Number): 8UD1900-6HA00
- Product family: Accessories and Spare Parts
- Product Lifecycle (PLM): PM300:Active Product
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 80 Day/Days
- Net Weight (kg): 0,086 Kg
- Packaging Dimension: 130,00 x 65,00 x 20,00
- Package size unit of measure: MM
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8UD1900-6HA00 | |||||||||||||||||||||||||||||||||
| Product Description | Door-coupling Size 8x 8 mm, large head Accessory for: Door-coupling rotary operating mechanism Shaft 8x 8 mm, 3KD | |||||||||||||||||||||||||||||||||
| Product family | Accessories and Spare Parts | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,086 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 130,00 x 65,00 x 20,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869527826 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5378 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
