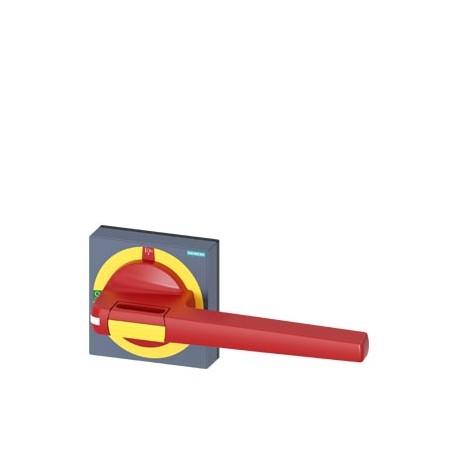

8UD1861-4AE05 SIEMENS handle with masking plate EMERGENCY-STOP size 100x 100, for shaft 12x 12, I-0-II, hand..
8UD1861-4AE05
18614
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is a Siemens 8UD1861-4AE05 SIEMENS handle with masking plate EMERGENCY-STOP size 100x 100, for shaft 12x 12, I-0-II, hand.. designed for emergency shutdown operation.
Emergency stop door handles provide prominent manual control interfaces with visual fault indication for safety switching devices in industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: handle with masking plate
- design of the product: EMERGENCY OFF
- design of handle: Red-yellow
- design of the door lock system: Door interlocking
- length of handle: 200 mm
- protection class IP: IP65
- Product details product description: without lighting
- product feature / interlock: Yes
- ● extension shaft: No
- ● handle for emergency-OFF function: Yes
- product feature / lockable: Yes
- Accessories accessories: Handle with masking frame
- display version / for switch position indicator: I-0-II
- Mechanical Design height: 144 mm
- width: 98 mm
- depth: 450 mm
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8UD1861-4AE05 | |||||||||||||||||||||||||||||||||
| Product Description | handle with masking plate EMERGENCY-STOP size 100x 100, for shaft 12x 12, I-0-II, handle size 200mm accessory for 3KC0 size 5 | |||||||||||||||||||||||||||||||||
| Product family | Accessories and Spare Parts | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,706 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 98,00 x 144,00 x 450,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869526126 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5378 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
