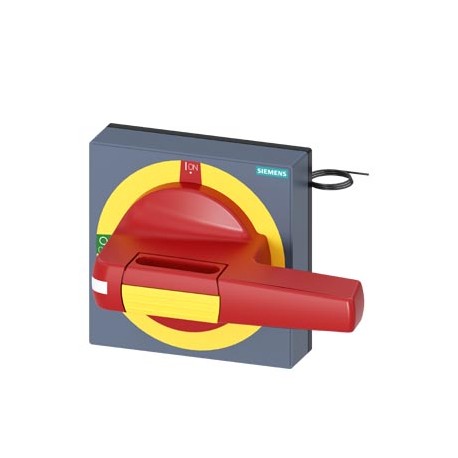

8UD1841-2CF01 SIEMENS handle with masking plate standard illuminated size 100x 100, for shaft 8x 8, test-0-I..
8UD1841-2CF01
18412
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
8UD1841-2CF01 SIEMENS handle with masking plate standard illuminated size 100x 100, for shaft 8x 8, test-0-I.. serves as a manual operator assembly mounted on enclosure doors to safely actuate disconnect switches or circuit breakers from the outside. Rotary handles of this class provide reliable mechanical interlocking and visual position indication for industrial machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: handle with masking plate
- design of the product: standard with tolerance compensation
- design of handle: Gray
- design of the door lock system: Door interlocking
- length of handle: 100 mm
- protection class IP: IP65
- Product details product description: with illumination
- product feature / interlock: Yes
- ● extension shaft: No
- ● handle for emergency-OFF function: No
- product feature / lockable: Yes
- Accessories accessories: Handle with masking frame
- display version / for switch position indicator: test-0-I
- Mechanical Design height: 198 mm
- width: 195 mm
- depth: 105 mm
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8UD1841-2CF01 | |||||||||||||||||||||||||||||||||
| Product Description | handle with masking plate standard illuminated size 100x 100, for shaft 8x 8, test-0-I, handle size 100mm accessory for 3KD size 3 3KF size 2 and 3 | |||||||||||||||||||||||||||||||||
| Product family | Ordering Data Overview | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,645 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 195,00 x 198,00 x 105,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869525617 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5378 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
