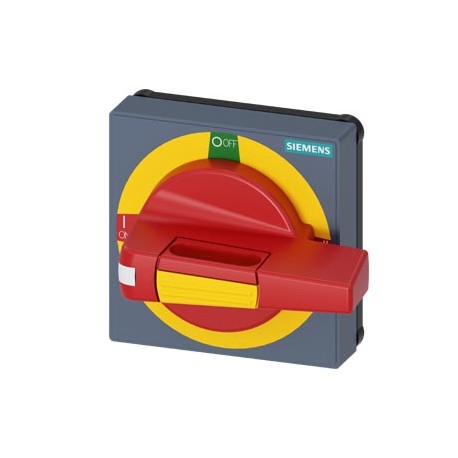

8UD1731-2AE05 SIEMENS Handle with masking frame Emergency switching-off Size 75x 75, for shaft 8x 8, I-0-II,..
8UD1731-2AE05
17312
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens emergency switching-off handle features a prominent red-yellow design with door interlocking capabilities, mounted externally on industrial control cabinets to cut power instantly in hazardous situations. Door-coupled operator handles ensure machinery cannot be accessed while energized.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: handle with masking plate
- design of the product: EMERGENCY OFF
- design of handle: Red-yellow
- design of the door lock system: Door interlocking
- length of handle: 55 mm
- protection class IP: IP65
- Product details product description: without lighting
- product feature / interlock: Yes
- ● extension shaft: No
- ● handle for emergency-OFF function: Yes
- product feature / lockable: Yes
- Accessories accessories: Handle with masking frame
- display version / for switch position indicator: I-0-II
- Mechanical Design height: 84 mm
- width: 84 mm
- depth: 80 mm
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8UD1731-2AE05 | |||||||||||||||||||||||||||||||||
| Product Description | Handle with masking frame Emergency switching-off Size 75x 75, for shaft 8x 8, I-0-II, Handle size 55 mm Accessory for 3KC0 size 1 and 2 | |||||||||||||||||||||||||||||||||
| Product family | Accessories and Spare Parts | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 2 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,172 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 70,00 x 75,00 x 80,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869526089 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5378 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
