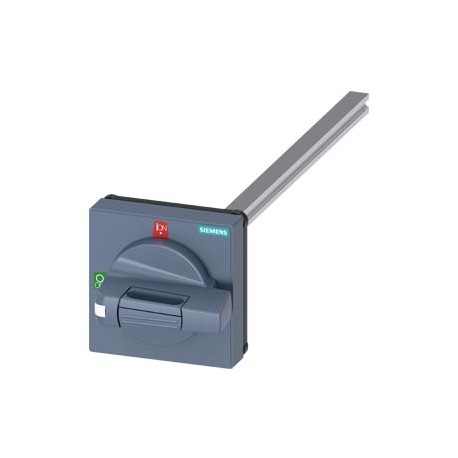

8UD1171-2AF21 SIEMENS Door-coupling rotary operating mechanism standard with tolerance compensation Size 75x..
8UD1171-2AF21
11712
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Siemens 8UD1171-2AF21 Door-coupling rotary operating mechanism standard with tolerance compensation Size 75x.. serves as an external manual operator for industrial control enclosures, allowing personnel to safely actuate internal disconnect switches from outside the closed panel. These mechanisms are commonly integrated into machinery cabinets and electrical distribution boards to maintain safety interlocks and provide clear switch position visibility.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- design of the product: standard with tolerance compensation
- design of handle: Gray
- design of the door lock system: Door interlocking
- length of handle: 45 mm
- protection class IP: IP65
- Product details product description: size 100x100 mm, shaft 8 x8 mm
- product feature / interlock: Yes
- extension shaft: Yes
- handle for emergency-OFF function: No
- product feature / lockable: Yes
- Accessories accessories: Door-coupling rotary operating mechanism
- display version / for switch position indicator: test-0-I
- Mechanical Design height: 105 mm
- width: 88 mm
- depth: 445 mm
- net weight: 622 g
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8UD1171-2AF21 | |||||||||||||||||||||||||||||||||
| Product Description | Door-coupling rotary operating mechanism standard with tolerance compensation Size 75x 75, Shaft 8x 8, 300 mm, test-0-1, Complete unit Handle size 45 mm Accessory for 3KD size 1 and 2, 3KF size 1 | |||||||||||||||||||||||||||||||||
| Product family | Accessories and Spare Parts | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,447 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 70,00 x 75,00 x 300,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869520667 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5378 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 | |||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
