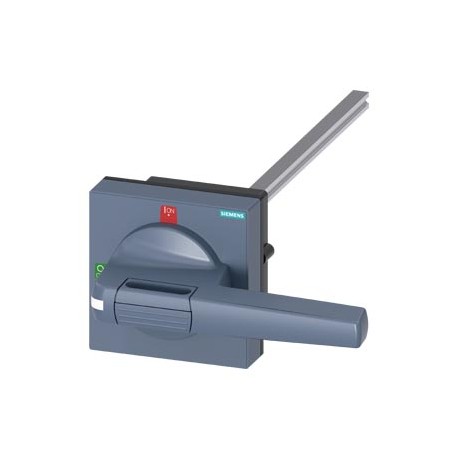

8UD1151-3AF21 SIEMENS Door-coupling rotary operating mechanism standard with tolerance compensation Size 100..
8UD1151-3AF21
11513
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Siemens 8UD1151-3AF21 SIEMENS Door-coupling rotary operating mechanism standard with tolerance compensation Size 100.. is an externally mounted door handle assembly designed to operate enclosed circuit breakers while providing secure door interlocking. Tolerance compensation features ensure reliable engagement and IP65 protection across varied enclosure depths.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- design of the product: standard with tolerance compensation
- design of handle: Gray
- design of the door lock system: Door interlocking
- length of handle: 140 mm
- protection class IP: IP65
- Product details product description: size 100x100 mm, shaft 8 x8 mm
- product feature / interlock: Yes
- ● extension shaft: Yes
- ● handle for emergency-OFF function: No
- product feature / lockable: Yes
- Accessories accessories: Door-coupling rotary operating mechanism
- display version / for switch position indicator: test-0-I
- Mechanical Design height: 144 mm
- width: 98 mm
- depth: 450 mm
- net weight: 910 g
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8UD1151-3AF21 | |||||||||||||||||||||||||||||||||
| Product Description | Door-coupling rotary operating mechanism standard with tolerance compensation Size 100x 100, Shaft 10x 10, 300 mm, Test-0-I, Complete unit Handle 140 mm Accessory for 3KD size 4, 3KF size 4 | |||||||||||||||||||||||||||||||||
| Product family | Ordering Data Overview | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 1,199 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 98,00 x 144,00 x 450,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869525211 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5378 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
