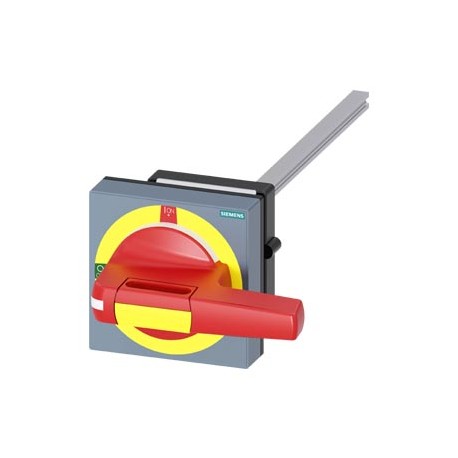

SIEMENS 8UD1141-3AF21 8UD1141-3AF21 SIEMENS Door coupling operating mechanism Standard with tolerance compensation Size 100 x 100,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8UD1141-3AF21 SIEMENS Door coupling operating mechanism Standard with tolerance compensation Size 100 x 100,..

8UD1141-3AF21

11413

SIEMENS

1 Pcs.

Door coupling operating mechanism Standard with tolerance compensation Size 100 x 100, Shaft 10x 10, 300 mm, Test-0-1 Complete unit Handle size 100 mm Accessory for 3KF size 3

Automation > Accessories/spare parts for low-voltage switch technology
3KD Switch-disconnectors, 3KC Power Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

Door coupling operating mechanism Standard with tolerance compensation Size 100 x 100, Shaft 10x 10, 300 mm, Test-0-1 Complete unit Handle size 100 mm Accessory for 3KF size 3
Model
product brand nameSENTRON
size of cross-section / of the shaft / of door-coupling rotary operating mechanism10x10 mm
size format / of the masking frame / of door-coupling rotary operating mechanism100x 100 mm
length of handle100 mm
length of shaft / of door-coupling rotary operating mechanism300 mm
Product details
product descriptionsize 100x100 mm, shaft 8 x8 mm
Accessories
accessoriesDoor-coupling rotary operating mechanism
Mechanical Design
net weight1 205 g

Downloads and manuals

General Product ApprovalDeclaration of ConformityMarine / Shipping

UL

VDE

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

LR (Lloyds Register)

other

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/15/2022


Additional data

Product
Article Number (Market Facing Number)8UD1141-3AF21
Product DescriptionDoor coupling operating mechanism Standard with tolerance compensation Size 100 x 100, Shaft 10x 10, 300 mm, Test-0-1 Complete unit Handle size 100 mm Accessory for 3KF size 3
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group12P / 1CL
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works80 Day/Days
Net Weight (kg)0,906 Kg
Packaging Dimension98,00 x 144,00 x 450,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869549675
UPCNot available
Commodity Code85389099
LKZ_FDB/ CatalogIDLV10
Product Group5378
Group CodeP360
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.06.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
UNSPSC1539-12-11-03

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) Other



Product Datasheet
