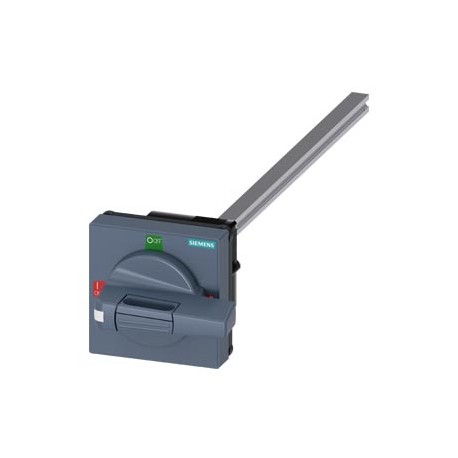

8UD1131-2AE21 SIEMENS Door-coupling rotary operating mechanism standard with tolerance compensation Size 75x..
8UD1131-2AE21
11312
SIEMENS
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
3KD Switch-disconnectors, 3KC Power Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Siemens 8UD1131-2AE21 door-coupling rotary operating mechanism standard with tolerance compensation size 75x.. serves as an external manual operator for industrial control enclosures, allowing safe switching of internal disconnects while keeping the cabinet securely locked. Such mechanisms are standard across electrical distribution panels to maintain operator safety during maintenance operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- design of the product: standard with tolerance compensation
- design of handle: Gray
- design of the door lock system: Door interlocking
- length of handle: 55 mm
- protection class IP: IP65
- Product details product description: size 75x75 mm, shaft 8x8 mm
- product feature / interlock: Yes
- ● extension shaft: Yes
- ● handle for emergency-OFF function: No
- product feature / lockable: Yes
- Accessories accessories: Door-coupling rotary operating mechanism
- display version / for switch position indicator: I-0-II
- Downloads and manuals General Product Approval: Declaration of Conformity
- Product Article Number (Market Facing Number): 8UD1131-2AE21
- Product family: Accessories and Spare Parts
- Product Lifecycle (PLM): PM300:Active Product
More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8UD1131-2AE21 | |||||||||||||||||||||||||||||||||
| Product Description | Door-coupling rotary operating mechanism standard with tolerance compensation Size 75x 75, Shaft 8x 8, 300 mm, I-0-II, Complete unit Handle size 55 mm Accessory for 3KC0 size 1 and 2 | |||||||||||||||||||||||||||||||||
| Product family | Accessories and Spare Parts | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12P / 1CL | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,505 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 70,00 x 75,00 x 300,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869525143 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | |||||||||||||||||||||||||||||||||
| Product Group | 5378 | |||||||||||||||||||||||||||||||||
| Group Code | P360 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2012 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology
| Value | Unit | |
|---|---|---|
| Type of accessory/spare part (EF000215) | Other |
