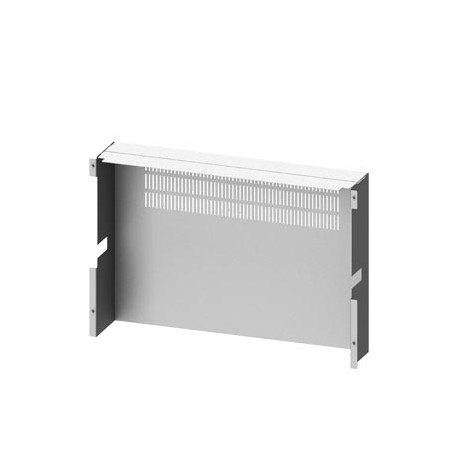

8PQ5000-1BA68 SIEMENS SIVACON S4 separation 3WL FS I cable connection, 3/4-pole, W: 800mm, cover
8PQ5000-1BA68
50001
SIEMENS
1 Pcs.
Automation > Door/operating panel (switchgear cabinet)
Power Distribution Boards SIVACON S4 up to 6.300 A and SICUBE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 8PQ5000-1BA68 Siemens SIVACON S4 cable connection separation cover provides compartmentalized partitioning within industrial switchboard assemblies to isolate high-voltage cable termination zones. Internal barriers enhance safety by preventing accidental contact with live connections during maintenance operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- design of the product: cable connection
- design of the surface: galvanized
- design: assembly kit
- color: miscellaneous
- ● cable entry: No
- ● lock: No
- height: 500 mm
- width: 800 mm
- depth: 140 mm
- installation width / for cabinet installation: 800 mm
- installation depth / for cabinet installation: 140 mm
- ● shape 2a: No
- ● shape 2b: No
- ● shape 3a: Yes
- ● shape 3b: Yes
- ● shape 4a: No
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8PQ5000-1BA68 | ||||||||||||||||||||||||||||||
| Product Description | SIVACON S4 separation 3WL FS I cable connection, 3/4-pole, W: 800mm, cover | ||||||||||||||||||||||||||||||
| Product family | Covers | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 193 / 1DR | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 9 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 8,790 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 520,00 x 750,00 x 170,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4042948170212 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 85381000 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.2 | ||||||||||||||||||||||||||||||
| Product Group | 3778 | ||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | ||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC000747 - Door/operating panel (switchgear cabinet)
| Value | Unit | |
|---|---|---|
| Model (EF000010) | Other | |
| Version as glazed door (EF006966) | - | |
| Version as door for disconnecting switch interlocking (EF006967) | - | |
| Height (EF000040) | 250.0 | mm |
| Depth (EF000049) | 800.0 | mm |
| EMC-version (EF001062) | - | |
| Material (EF002169) | Steel | |
| Surface finishing (EF006569) | Other | |
| Colour (EF000007) | Other | |
| Degree of protection (IP) (EF005474) | Other | |
| Degree of protection (NEMA) (EF011959) | Other | |
| Width (EF000008) | - | mm |
