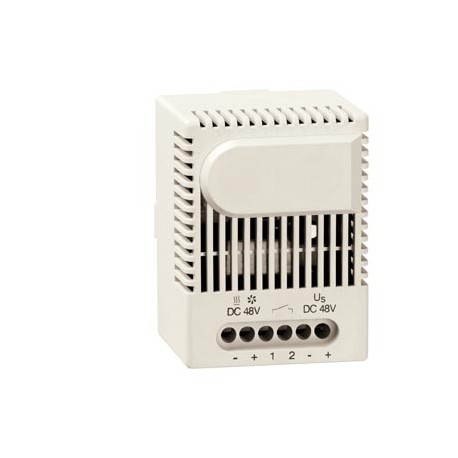

SIEMENS 8MR2180-1A 8MR2180-1A SIEMENS 24 V DC,16A SM010, 01001.0-00, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8MR2180-1A SIEMENS 24 V DC,16A SM010, 01001.0-00,

8MR2180-1A

21801

SIEMENS

1 Pcs.

24 V DC,16A SM010, 01001.0-00,

Automation > Component for arrangement / baying system (switchgear cabinet)
Power Distribution Boards SIVACON S4 up to 6.300 A and SICUBE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM: EC002622 - Component for arrangement / baying system (switchgear cabinet)

Value Unit
Model (EF000010) Other
Width (EF000008) 50.0mm
Height (EF000040) 67.0mm
Depth (EF000049) 46.0mm
Material (EF002169) Plastic
Colour (EF000007) Grey
RAL-number (EF000116) 7035


24 V DC,16A SM010, 01001.0-00,
Model
product brand nameSIVACON
product designationSwitching module
design of the productOther
design of the switching contactNO contact (relay/MOSFET)
General technical data
operating temperature
● minimum-45 °C
● maximum70 °C
mechanical service life (switching cycles) / typical100 000
materialPlastic
Operating voltage / at DC24 V
Appearance
RAL color numberRAL7035
colorgrey
Connections
tightening torque / with screw-type terminals / maximum0.5 N·m
type of electrical connection6-pole terminal, solid wire line 2.5 mm2, stranded wire line with end sleeve 1.5 mm2
Mechanical Design
height67 mm
width50 mm
installation depth46 mm
mounting typeClip for 35 mm DIN rail
mounting positionany
net weight0.09 kg
Environmental conditions
Relative humidity / Reference value90 %
ambient temperature / during storage
● minimum-45 °C
● maximum70 °C
Certificates
reference code
● acc. to DIN EN 61346-2K
● acc. to DIN EN 81346-2K
General Product Approval

EAC

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications


Product
Article Number (Market Facing Number)8MR2180-1A
Product Description24 V DC,16A SM010, 01001.0-00,
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group14V
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,099 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension50,00 x 51,00 x 71,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4019169675437
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10.2
Product Group5847
Group CodeP310
Country of originFrance
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classD: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer)
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-18-92-63
eClass7.127-18-92-63
eClass827-18-92-63
eClass927-18-92-63
eClass9.127-18-92-63
ETIM4EC002622
ETIM5EC002622
ETIM6EC002622
ETIM7EC002622
