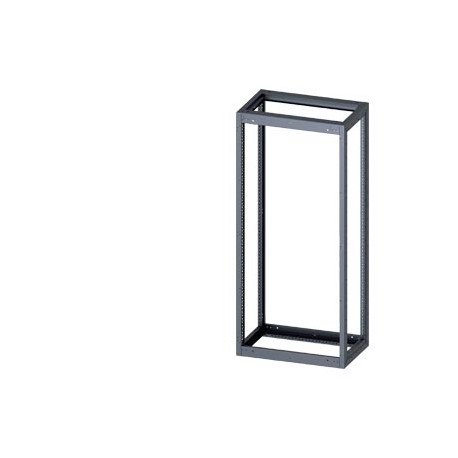

8MF1885-2GS30 SIEMENS SIVACON, Supporting structure, for standard Empty enclosure, H: 1800 mm, W: 800 mm, T:..
8MF1885-2GS30
18852
SIEMENS
1 Pcs.
Automation > Component for installation (switchgear cabinet)
Power Distribution Boards SIVACON S4 up to 6.300 A and SICUBE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Siemens 8MF1885-2GS30 supporting structure forms the rigid structural framework for standard empty enclosures in heavy-duty electrical distribution systems. Enclosure frames provide the core structural integrity needed to house complex multi-tier control gear, busbars, and protection equipment safely.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- product designation: Frame
- design of the product: For standard empty enclosure
- design of the surface: galvanized
- Product details product component / top plate: No
- Mechanical Design height: 1 800 mm
- width: 800 mm
- depth: 500 mm
- material thickness / of the plate: 2.5 mm
- material: steel
- Downloads and manuals General Product Approval: Declaration of Conformity
- Product Article Number (Market Facing Number): 8MF1885-2GS30
- Product family: Components and Accessories
- Product Lifecycle (PLM): PM300:Active Product
- Delivery information Export Control Regulations: AL : N / ECCN : N
- Standard lead time ex-works: 10 Day/Days
- Net Weight (kg): 44,000 Kg
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 8MF1885-2GS30 | ||||||||||||||||||||||||||||||
| Product Description | SIVACON, Supporting structure, for standard Empty enclosure, H: 1800 mm, W: 800 mm, T: 500 mm, zinc-plated | ||||||||||||||||||||||||||||||
| Product family | Components and Accessories | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 14V / 1BS | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 10 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 44,000 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 600,00 x 1800,00 x 400,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4001869544199 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 94039910 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | ||||||||||||||||||||||||||||||
| Product Group | 3799 | ||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2016 | ||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002620 - Component for installation (switchgear cabinet)
| Value | Unit | |
|---|---|---|
| Max. load capacity (EF000258) | - | kg |
| Model (EF000010) | Other | |
| Suitable for enclosure building width (EF000326) | 800.0 | mm |
| Suitable for enclosure building height (EF009583) | 1800.0 | mm |
| Suitable for enclosure building depth (EF000327) | 500.0 | mm |
| Width (EF000008) | 800.0 | mm |
| Height (EF000040) | 1800.0 | mm |
| Depth (EF000049) | 500.0 | mm |
| Material (EF002169) | Other | |
| Colour (EF000007) | Other | |
| RAL-number (EF000116) | - |
