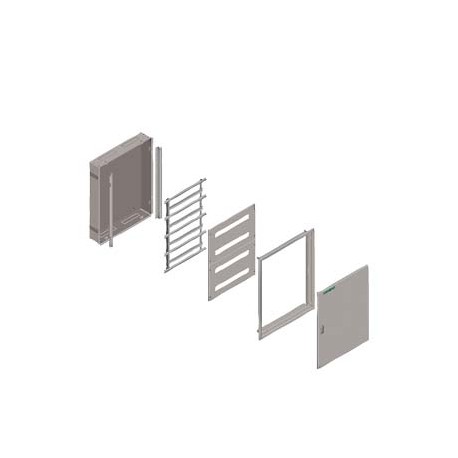

SIEMENS 8GK2043-3KL21 8GK2043-3KL21 SIEMENS ALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution board pan.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8GK2043-3KL21 SIEMENS ALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution board pan..

8GK2043-3KL21

20433

SIEMENS

1 Pcs.

ALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution board panel, IP31, Protection class 1, H: 1000 mm, W: 600 mm, T: 140 mm, RAL 7035, with door Full IP31D flush ALPHA box P. Opaque door B600 H1000. Cancelations and returns limited. Consult conditions.

Automation > Empty cabinet
ALPHA distribution boards up to 800 A (Sheet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Technical data

ALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution board panel, IP31, Protection class 1, H: 1000 mm, W: 600 mm, T: 140 mm, RAL 7035, with door
Model
product brand nameALPHA 125 UNIVERSAL
product designationWall-mounted cabinet
design of the productFlush-mounting, with distribution board panel
surface processingpowder-coated
Protection class
protection class IPIP31
operating resource protection classSafety class 1
suitability for interaction / lightning protectionYes
suitability for use / for outside useNo
Appearance
RAL color number7035
product component
● cable entryYes
● mounting plateNo
special product featureWith door
product extension / optional / side-by-side mountingNo
number of DIN mounting bars5
Mechanical Design
height1 000 mm
width600 mm
depth140 mm
installation depth140 mm
number of modular width units / per DIN mounting bar120
net weight31.2 kg
material / of the enclosureSteel

Downloads and manuals

General Product ApprovalDeclaration of Conformity

Confirmation

EAC

Miscellaneous

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Test Certificatesother

Special Test Certificate

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/4/2022


Additional data

Product
Article Number (Market Facing Number)8GK2043-3KL21
Product DescriptionALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution board panel, IP31, Protection class 1, H: 1000 mm, W: 600 mm, T: 140 mm, RAL 7035, with door
Product familyNot available
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group13W / 1BP
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)31,200 Kg
Packaging Dimension785,00 x 1155,00 x 185,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869373577
UPCNot available
Commodity Code85381000
LKZ_FDB/ CatalogIDLV10.2
Product Group5561
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
Not available

ETIM data

ETIM: EC000058 - Empty cabinet

Value Unit
Mounting method (EF000003) Flush mounted (plaster)
Type of cover (EF000339) Optional
Cover model (EF009212) None
Type of door (EF004464) None
Transparent cover/door (EF006244) -
With lock (EF006306) -
Nominal current (In) (EF008873) 125A
Height (EF000040) 1000.0mm
Width (EF000008) 600.0mm
Depth (EF000049) 140.0mm
Built-in depth (EF000218) 140.0mm
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Number of modules (EF004427) -
Number of rows (EF000266) -
Width in number of modular spacings (EF002950) -
Number of openings for flange plates (EF009554) -
Extension possible (EF001088) false
Number of conduit inlets (EF000437) -
Material housing (EF001596) Steel
Surface protection (EF000139) Powder coating
With mounting plate (EF000118) false
Suitable for outdoor use (EF003532) false
Suitable for lightning protection (EF007800) true
Degree of protection (IP) (EF005474) IP31
Degree of protection (NEMA) (EF011959) Other
Protection class (EF000004) I
Impact strength (EF004293) Other
Circuit integrity (EF001613) None
Material plate thickness cabinet (EF009170) -mm
Plate thickness door/cover (EF009171) -mm
Internal depth (EF001131) -mm
