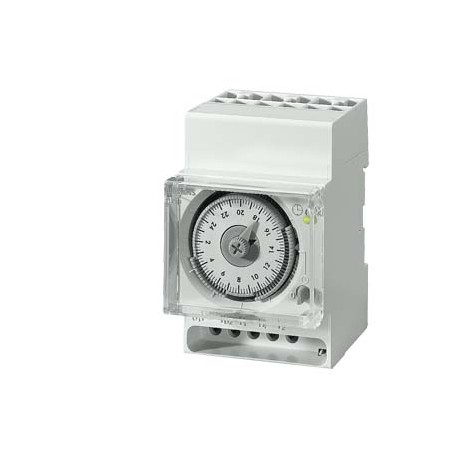

7LF5301-5 SIEMENS Quartz time switch Week 1 change-over contact 230 V/50-60 Hz 3 MW auto. daylight-saving ti..
7LF5301-5
53015
SIEMENS
1 Pcs.
Automation > Analogous time switch for distribution board
Other Modular Systems
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 7LF5301-5 SIEMENS Quartz time switch Week 1 change-over contact 230 V/50-60 Hz 3 MW auto. daylight-saving ti.. is a quartz-controlled weekly time switch designed to handle complex, multi-day scheduling routines in industrial and commercial switchboards. Weekly time switches automate equipment operation across extended cycles, optimizing energy consumption in facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- product designation: Timers
- design of the product: Week
- design of the switching function: CO contact
- ● line-synchronous: No
- ● quartz-controlled: Yes
- shortest switching time interval / of channel 1: 240 min
- Supply voltage supply voltage / initial value: 230 V
- supply voltage / full-scale value: 230 V
- type of voltage / of the supply voltage: AC
- ● minimum: 50 Hz
- ● maximum: 50 Hz
- Protection class protection class IP: IP20
- Product details product feature / floating switching contact: Yes
- ● 60 min time program: No
- ● automatic daylight-saving adjustment: Yes
- ● direct operation: Yes
More info
▲Technical data
Additional data
| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7LF5301-5 | ||||||||||||||||||||||||||||||
| Product Description | Quartz time switch Week 1 change-over contact 230 V/50-60 Hz 3 MW auto. daylight-saving time switchover | ||||||||||||||||||||||||||||||
| Product family | 7LF5 Mechanical Time Switches | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
| Standard lead time ex-works | 1 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,174 Kg | ||||||||||||||||||||||||||||||
| Packaging Dimension | 56,00 x 97,00 x 83,00 | ||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | 4001869335841 | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 91070000 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10.1 | ||||||||||||||||||||||||||||||
| Product Group | 5523 | ||||||||||||||||||||||||||||||
| Group Code | P310 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | ||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
ETIM data
ETIM: EC002304 - Analogous time switch for distribution board
| Value | Unit | |
|---|---|---|
| Mounting method (EF000003) | DIN rail | |
| Number of channels (EF000259) | 1 | |
| Supply voltage (EF004127) | ['230', '230'] | V |
| Voltage type of supply voltage (EF002991) | AC | |
| Frequency supply voltage (EF004687) | ['50', '50'] | Hz |
| Autonomy in hours (EF004721) | - | |
| Autonomy in years (EF004720) | - | |
| Accuracy per day (EF006325) | - | s |
| 60 min. program (EF002964) | false | |
| 24 h program (EF002965) | false | |
| Weekly program (EF001184) | true | |
| Annual program (EF001185) | false | |
| Mains synchronous (EF002973) | false | |
| Quartz controlled (EF002974) | true | |
| Contact type (EF001587) | Change-over contact | |
| Shortest switching time channel 1 (EF004855) | 240.0 | min |
| Program shift divide 1 (EF005181) | 120.0 | min |
| Automatic switching summer-/winter time (EF002977) | true | |
| Manual operation (EF002978) | true | |
| Switching preselection (EF002979) | true | |
| Nominal switching current at 250 V AC (EF005126) | 16 | A |
| Potential free switch contact (EF003626) | true | |
| Degree of protection (IP) (EF005474) | IP20 | |
| Width in number of modular spacings (EF002950) | 3 | |
| Width (EF000008) | 53.0 | mm |
| Height (EF000040) | 83.0 | mm |
| Depth (EF000049) | 64.0 | mm |
| Shortest switching time channel 2 (EF004856) | - | min |
| Program shift divide 2 (EF005182) | - | min |
